20A 120V LCD digitális áramfeszültség teljesítménymérő 2.4KW feszültségmérő mérő

20A 120V LCD Digital Current Voltage Power Meter 2.4KW Voltmeter Ammeter Tester

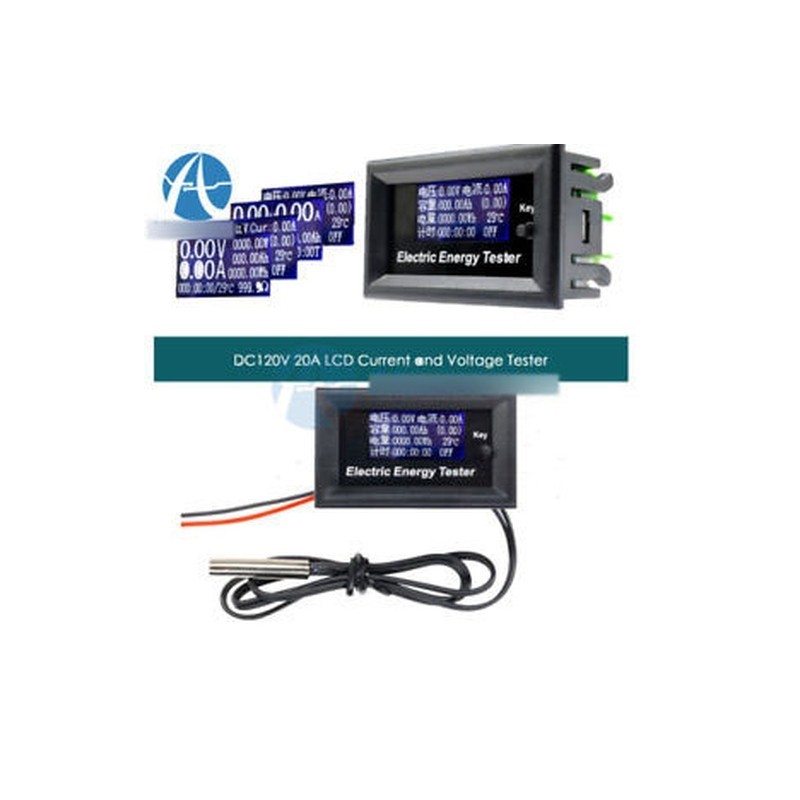

DC120V 20A LCD Current Meters digital voltmeter ammeter voltage amperimetro wattmeter volt capacity tester indicator lcd monitorSpecifications:Input / output interface: 20 A high current screw

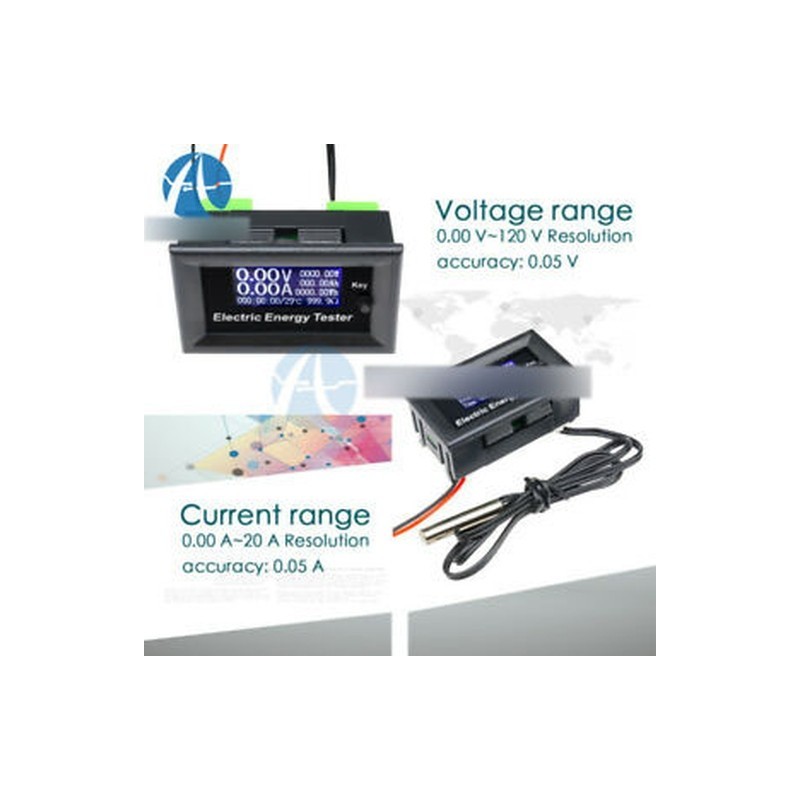

Voltage range: 0.00 V~120 V Resolution accuracy: 0.05 V.
Current range: 0.00 A~20 A Resolution accuracy: 0.05 A.
Capacity range: 0~999.99 Ah resolution accuracy: 0.01 Ah
Power accumulation range: 0~9999.9 Wh resolution accuracy: 0.01 Wh
Power range: 000.00~2400 W resolution accuracy: 0.01 W
Impedance range: 1~999.9 resolution accuracy: 0.1
Temperature range: 0~99°C Resolution accuracy: 1°C
The longest time: 999H59M59S resolution accuracy: 1S
Time reminder setting: count down any value for 24 hours
Small current standby alarm threshold parameter: <2 W / 0.5 H.
Small voltage power requirements: measurement <7.8V
Low voltage, please provide independent power interface
4~30V DC supply voltage range of the measurement system
Refresh time: > 500 ms / hour > 500 ms / time
Measuring speed: 0.5 times per second
Display Type: Micropower consumption of LCD module LCM black font
Chinese and English green backlit display
Product size: 105 x 81 x 17mm
Due to power flow: <0.02 A
Working temperature: -10~ 60 degrees Celsius -10~ 60°C
Working humidity: 10~80 (dew) undoubtedly 10~80 (no doubt)
Working pressure: 80~106 kpaPackage Included:1 x Electric Energy Tester
1 x Test Cable
1 x Connect Cable
