12A 200W állítható DC-DC leállító átalakító Buck modul 4.5-30V és 0.8-32V között

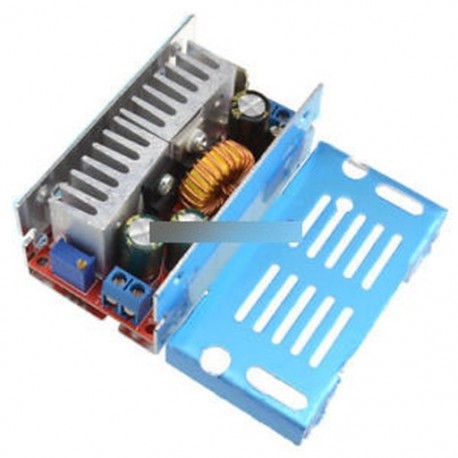

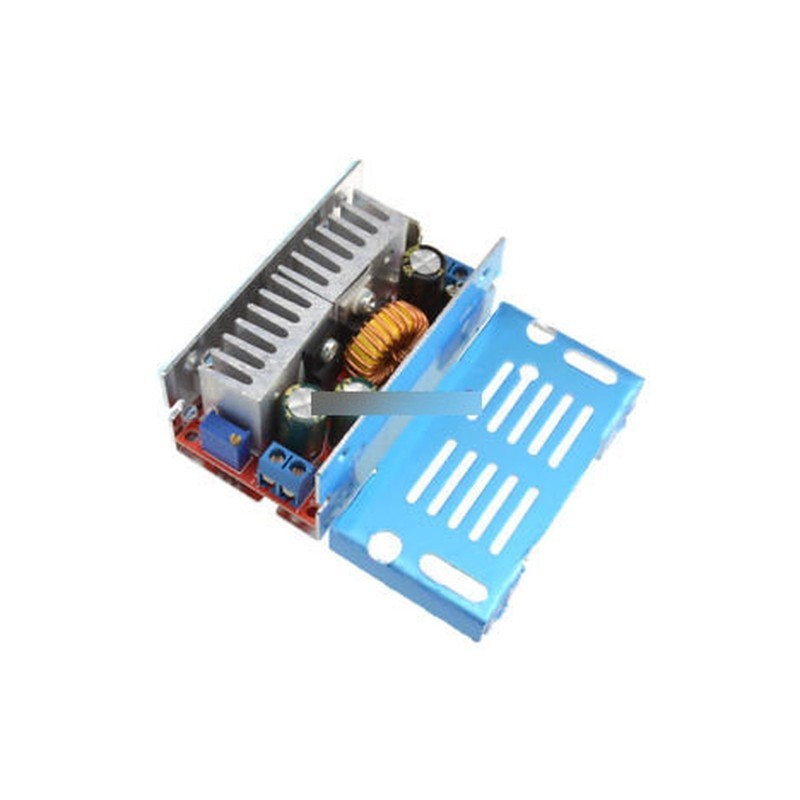

12A 200W Adjustable DC-DC Step Down Converter Buck module 4.5-30V to 0.8-32V
Specification:Type: non-isolated step-down module (Buck)
Dimensions: 70mm x 39mm x 31mm
Input voltage :4.5-32V ( please don't exceed 32V)
Output voltage :0.8-30V (continuously adjustable)
Output current :0-12A (Max.)
Output power: 100W, 200W (enhance heat dissipation)
Operating frequency: 180KHz
Conversion efficiency: up to 95%
Operating temperature: -40 to 85 °c
Short circuit protection: Yes (please try not to short-circuit)
Overtemperature protection: Yes (automatically shutdown the output)
Input reverse polarity protection: Yes (can not be prolonged reverse)
Installation: terminals, needn't solder
IN : input positive
IN- : input negative
OUT : output positive
OUT-: output negativeApplications:Voltage convert: 12 to 3.3V; 12V to 5V; 24 to 5V; 24V to 12V
DIY an adjustable voltage regulated power supply
24V Car Laptop power supply
Car LED power supply
Small power motor speed control
Power supply transformers
Industrial equipment buckBatteries buck, and etc. Package included : 1x 12A 200W Adjustable DC-DC Step Down Converter Buck module 4.5-30V to 0.8-32V
