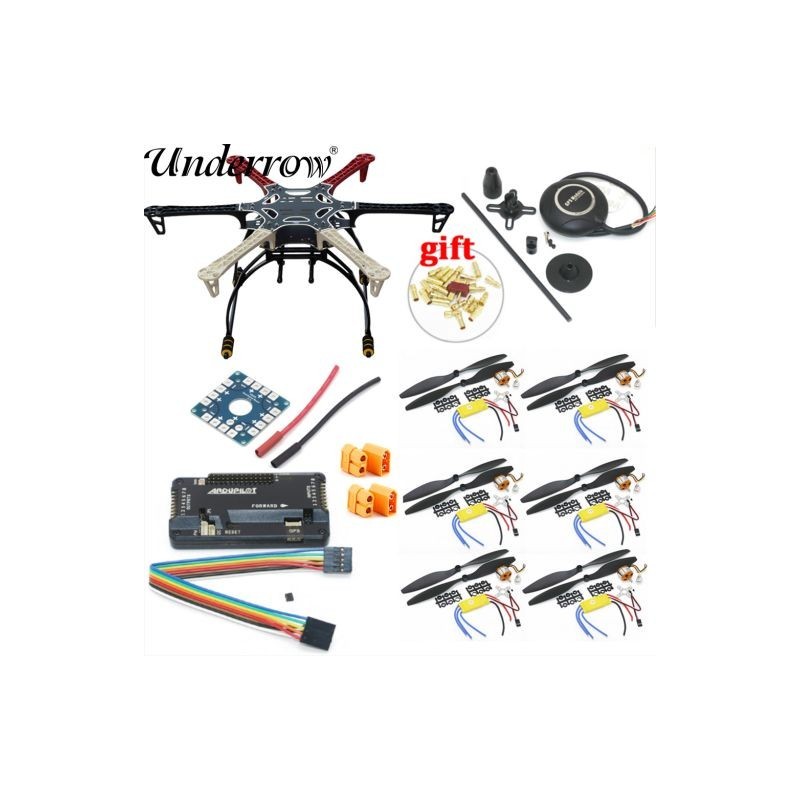

Szín: Nincs FS-I6 Tx - F550 Hexacopter váz futómű készlettel APM2.8 Repülésvezérléssel 7M GPS A2212 1000KV 30A ESC

HJ550 is a series of "Firewheel" Multicopter frame from HJ. It is very
suitable for RC beginner althougn HJ550 have simple design, with built-in
circuit board for ESC power distribution, seldom parts but strong structure to
let user more easier for maintenance. The mounting holes design can fit for
different controller board e.g. KK, FF, MK, MWC in the RC market, it can fulfill
different kind of user need e.g. FPV.
Please note that the thickness of
the 4 motor arms are 5mm, pls use M3x8 screw for motor
fixing.
Recommanded Combination:
Motor: A2212/2216/2814
800KV~1000KV
ESC: 20A ~ 30A
Propeller Size: 10x4.5 in or 10x4.7
in
Battery: 4s 2000mah ~ 3600mah Lipo
Material: glass fiber ABS
plastic
Color: red black white
Weight: 424 grams
Wheelbase: 550
mm
Takeoff weight: 1200 - 2400 grams
Propeller: 9443, 1045
Recommended
battery: 3S - 4S LiPo
Recommended motor: 2212, 2216
Recommended ESC: 20A
-40A,
Complete set includes: Arm x 6 Upper cover x 1 Lower cover x 1 Force
arm screw 36 Motor screw 24
APM V2.8.0 description:
- This version eliminates the 1.0mm 6P
SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C
external compass interface.
- Put DF13-5P GPS interface with external compass
interface, convenient for the connection of GPS and externalcompass.
- V2.52
I2C interface changes to multifunctional MUX interface
- Modified version
added isolation resistor, when the OSD interface used with telemetry, the
interfaces is effectively avoided
- V2.52 version 3.5V power supply adopts
IPS79133, 6V withstand voltage, output current 100mA, need to supply power for
six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new
version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing
the possibility of Bad Gyro health
APM V2.8.0 Flight Controller
- Needle:
staight
- Power supply: LP2985-3.3
- Max voltage: 16V
- Add a 47uF
tantalum capacitor
- Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD
is the defaulted output)
Jumper cap choose:
- Built-in compass: plug the
jumper cap in the MAG pin header.
- External compass: pull up the jumper cap
from the MAG pin header.
