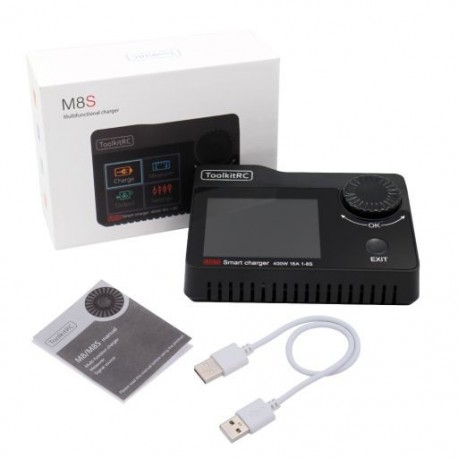

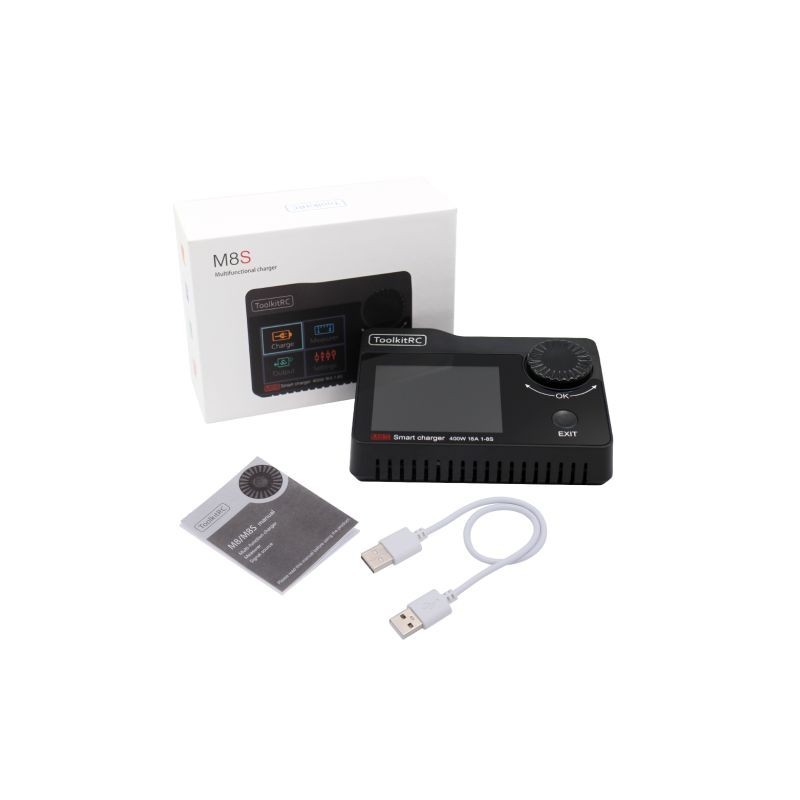

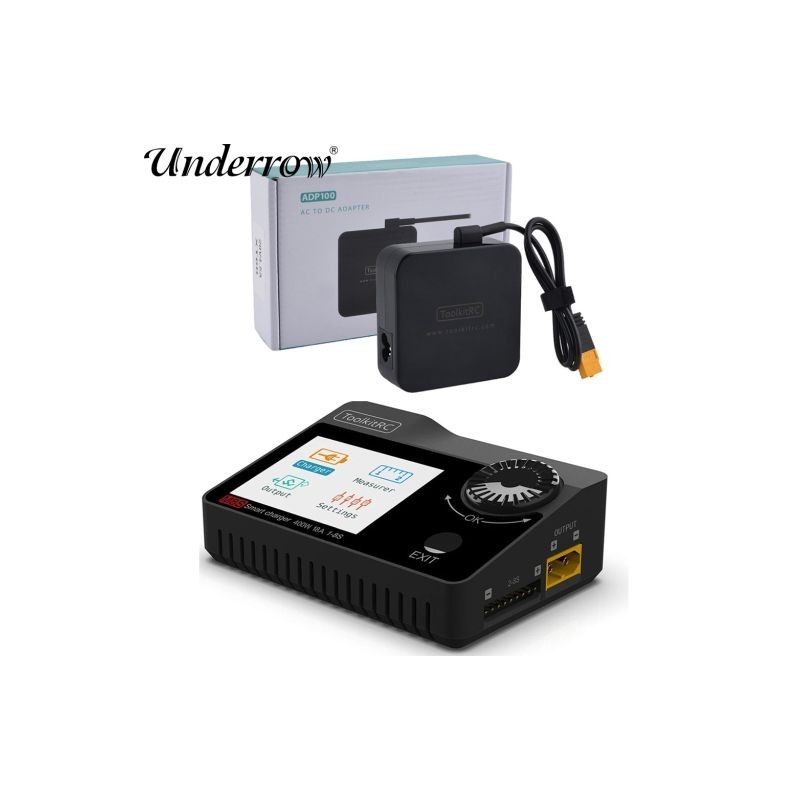

Szín: M8S - ToolkitRC M8S 400W 18A 2,4 TFT színes LCD képernyő Balance töltő kisütő 1S - 8S Lipo Rc Racing Drone

Features:
2.4"
Color Screen
Battery
Charger
Cell
Checker
Servo
Tester
PWM,PPM.SBUS
Input/output Receiver & Flight control tester
Viable
AMp/volt DC Power supply (Required external DC input)
Specification:
Input:
7-30V @MAX18A
Battery
Type: LiPo LiHV LiFe Lion @ 1-8S NiMh @1-20S Pb @1-12S
Bal
Current: 800mA @2-8S
Accuracy:
±0.01V
Charging
Power: 0.1-18A @ 400W
Discharging
Power: 0.1-18A @ 400W
Recycle
Mode: 0.1-5A @ 20W Normal Mode
USB:
2.1A @ 5.0V upgrade
Size:
98mm*68mm*35mm
Weight:
170g
Measuring:
PWM
880us-2200us @20-400Hz
PPM
880us-2200us*8Ch @20-50hz
SBUS
880us-2200us*16ch @20-100Hz
Voltage
1.0V-5.0V @1-8S
IR
1-100mR @1-8S
Output:
PWM
500us-2500us @20-1000Hz
PPM
880us-2200us*8ch @50hz
SBUS
880us-2200us*16ch @74Hz
Power
1-18A @ 1-30V Mode: CC CV
Display:LCD
TFT 2.4 inch 320*240 resolution
