Szín: FG-100 DDS - DDS funkciójelgenerátor frekvenciaszámláló FG-100 funkciógenerátor jelforrás frekvenciamérő 1Hz

A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!
DDS funkciójelgenerátor frekvenciaszámláló FG-100 funkciógenerátor jelforrás frekvenciamérő 1Hz - 500KHz
DDS Function Signal Generator Frequency Counter FG-100 Function Generator Signal Source Frequency Meter 1Hz - 500KHz
Features：

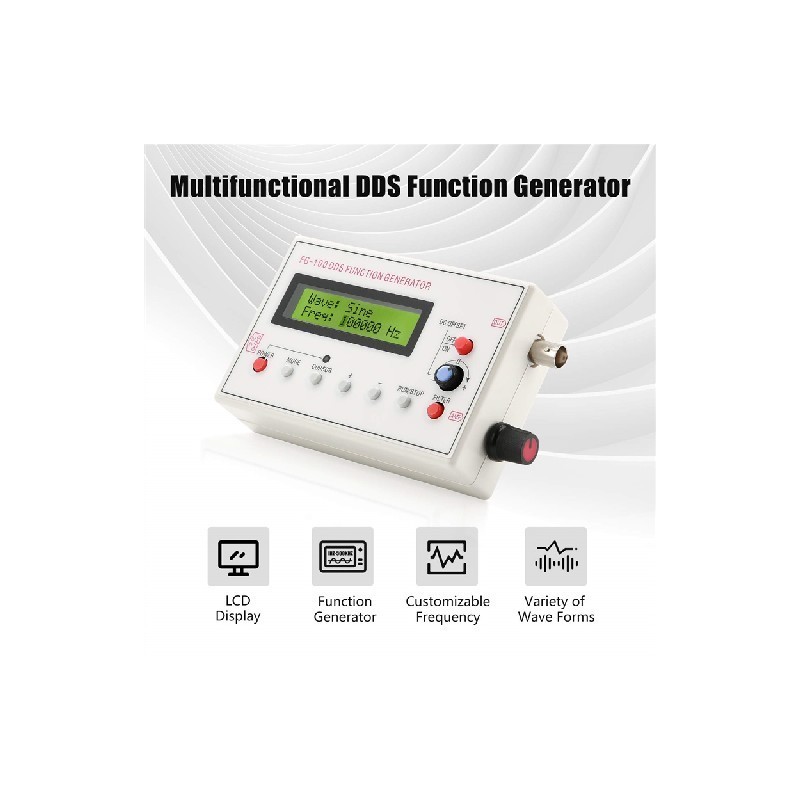

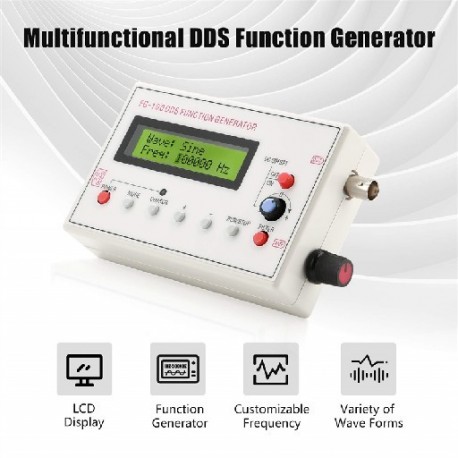

1.FG-100 DDS Function generator is a low frequency signal generator.
2.It is small size, full function, easy operating and portable. Its power supply can be either AC/DC adaptor or a Lithium battery.
3.Working with an oscilloscope, it can be used to troubleshoot the electronic circuit, characterize the audio amplifier frequency response or measure the impulse response.
4.Due to the excellent DSS accuracy and frequency stability, it can also be used to calibrate the sweep time factor for oscilloscopes. You can also use its square wave to calibrate your oscilloscope attenuator or adjust your oscilloscope probe
5.Have a filter (can be opened and closed) to suit the output of sine wave and pulse wave.
Specifications:
1. Frequency range: Sinewave 1Hz~500kHz (Magnitude is flat up to 200kHz, above 200kHz, the magnitude may drop as frequency increases), other waveforms 1Hz-20kHz with good phase noise and small distortion, if you don’t care the phase noise and distortion, it can output full frequency range.
2. Minimum frequency step: 1Hz

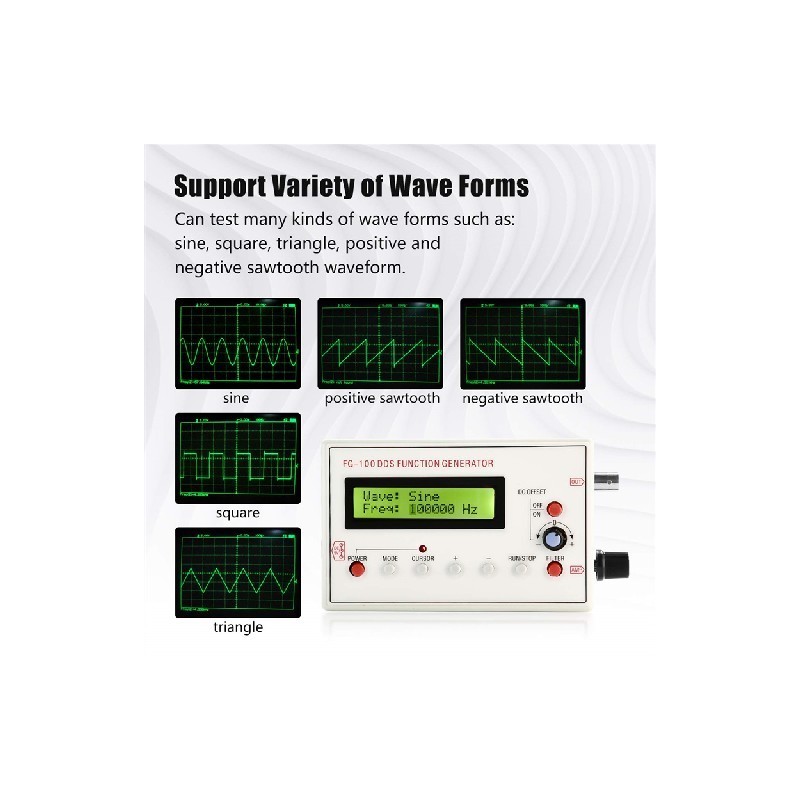

3. Output waveform: sine wave, square wave, triangle wave, forward sawtooth wave, reverse sawtooth wave.
4. Sinewave distortion: 1% (frequency <1kHz); 0.5% (frequency >=1kHz).
5. Maximum output amplitude: /-10V
6. Output impedance: 50 ohm
7. DC offset: maximum /-10V, can be disabled.
8. Internal filter: for sinewave or pulse, can be turn on/off.
9. Power supply: DC3.5-10V. A 5V AC/DC adaptor or a 3.7 Lithium battery is recommended.
10. Output port specifications: bnc.
11.All setting parameters can be saved.

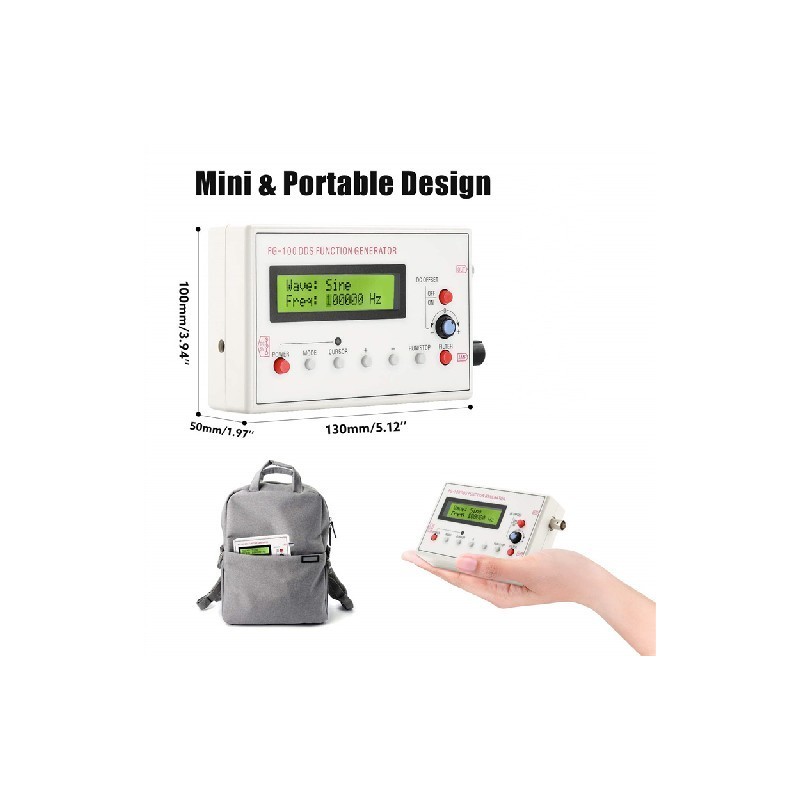

12. Dimensions: 140x80x27mm.
13. Weight (including accessories): about 220g.
Output frequency range:
Sine wave: 1Hz-500KHz (effective range)
Square wave: 1Hz - 20kHz (effective range)
Triangle wave: 1Hz - 20KHz (effective range)
Ramp: 1Hz - 20kHz (effective range)
Key Description:
MODE: Waveform switch button
CURSOR: Cursor steady key
RUN/STOP: Start to output waveform
: Frequency plus
-: Frequency reduction
OFFSET adjusts waveform offset
AMP modulation waveform amplitude
Package：
1 x FG-100 DDS Function Signal Generator
1 x USB power adapter cable
Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
