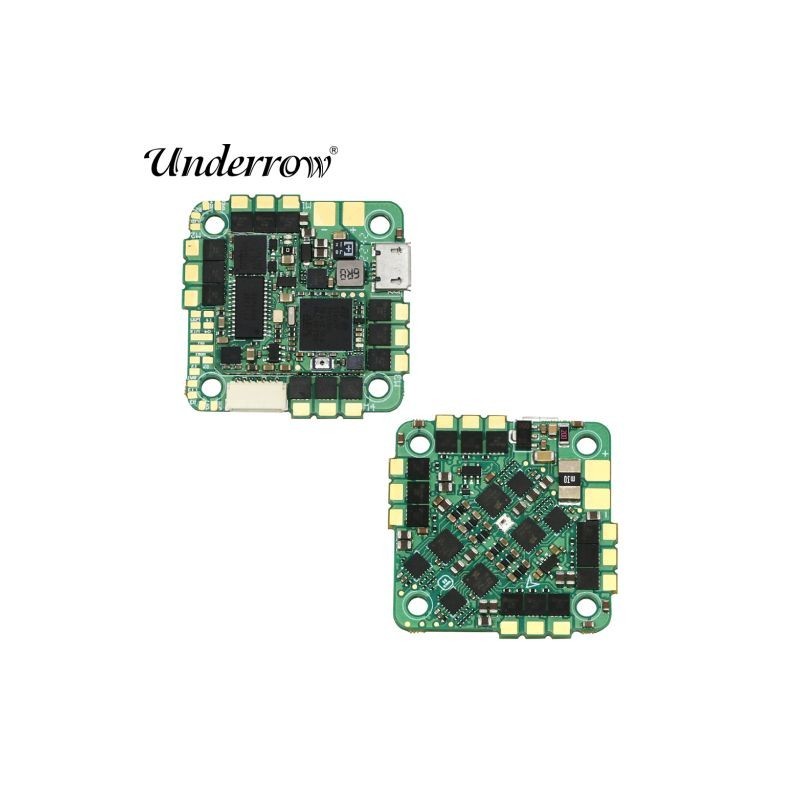

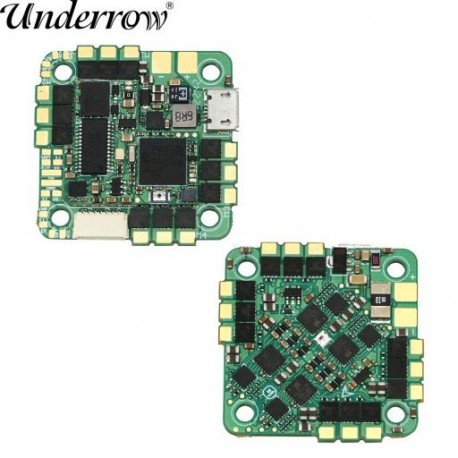

Szín: BLITZ Whoop F7 AIO - iFlight BLITZ Whoop F7 2-6S 55A AIO fedélzeti repülésvezérlő/ESC 55A 5V/2.5A kimenet ESC RC FPV

Product features:
The flight control and electrical control adopt the mode of separation and lamination to avoid the mutual interference between the flight control and electrical control to the greatest extent.
The flight control adopts STM32F745 master control packaged with BGA, and the frequency is up to 216MHz.
Support 2-6S LIHV battery input, continuous current 55A, peak current 65A.
Basic parameters of flight control:
Master control: STM32F745
Gyroscope: BMI 270
Barometer: DPS310
OSD:IFLIGHT OSD （AT7456E）
Black box: 16MB
Input voltage: 2-6S supports LIHV battery
Support Smartaudio&IRCTamp adjustment diagram transmission
WS2812 LED light strip: support
Buzzer: support
Flight control firmware: IFLIGHT_ BLITZ_ F7_ AIO
External dimension: 35 * 35mm
Hole size: 25.5 * 25.5/ φ three
Weight: 10.5g (± 2g)
① BEC: Output 5V 2A * 3A**
*Continuous output current
**Instantaneous output current (15 seconds)
Number of serial ports: 5 * UART (UART1, UART2, UART3, UART4, UART7):
UART1 connects HD image transmission/analog image transmission
UART2 connects to DJI Sky SBUS
UART3, UART4, UART7, connect the receiver or GPS or other devices that need a serial port.
one × I2C, connected to GPS compass
Interface definition:
1xSH1.0 7pin connection HD HD image transmission/analog image transmission (VBAT/GND/T1/R1/GND/R2/5V)
1xSH1.0 4pin connection USB adapter board (GND/D /D -/5V)
Basic parameters of electric regulation:
Master control: BB21 (8-bit)
Drive: FD6288
Input voltage: 2-6S supports LIHV battery
Output current: 55A, peak value: 65A (10 seconds)
Electric regulator: Q-H-40 - Bluejay, 0.16, 24kHz
Current sensor: scale 200 (1/10mV/A)
BEC: None
Telemetering: not supported
Bidirectional DSHOT: Supported (Bluejay firmware is required)
Drive signal support: DShot150/300/600, MultiShot, OneShot drive signal
