Piroelektromos infravörös érzékelő modul Pir Motion A8H4 H8F1

Infrared sensor of the control boardIt can sensitivity and the waiting time to adjustDetection range: about 7 meters / 23 feetDetection angle: less than 100 degreesVoltage Network: DC 4.5V-20V Standby current: less than 50uAOutput voltage level: 3V up / down 0VOperating temperature: -15~ 70 ℃Trigger way: non-reputation shutter button / shutter button H reputationCard Size: about 32 mm X 24mm / 1.3 x 0.9 inchPackage included: 1 x IR detector module Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /-1-3cm. Brand Unbranded MPN Does not apply UPC 4894462139271 EAN 4894462139271 ISBN 4894462139271...

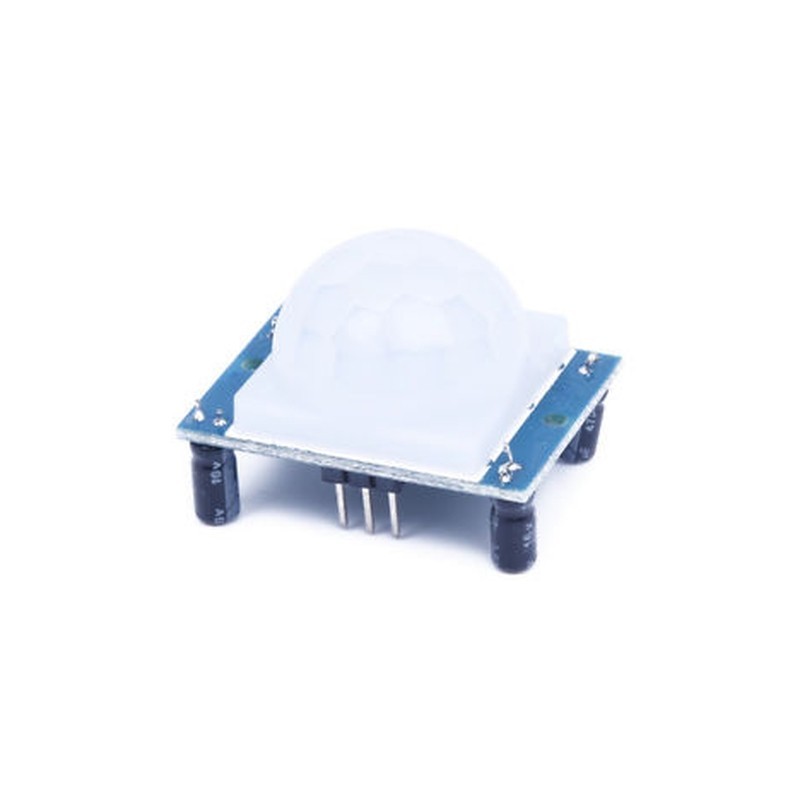

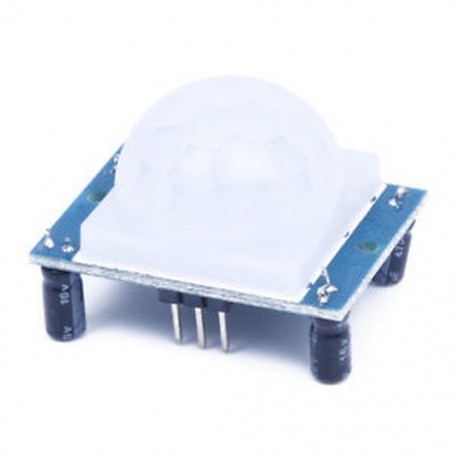

Module Pyroelectric Infrared Detector Pir Motion A8H4 H8F1

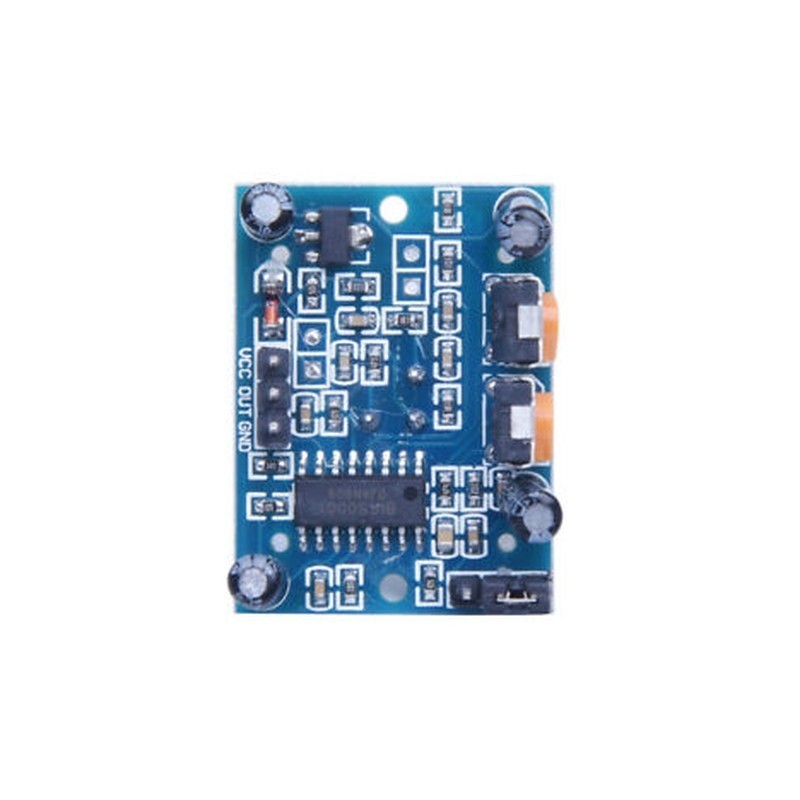

Infrared sensor of the control board

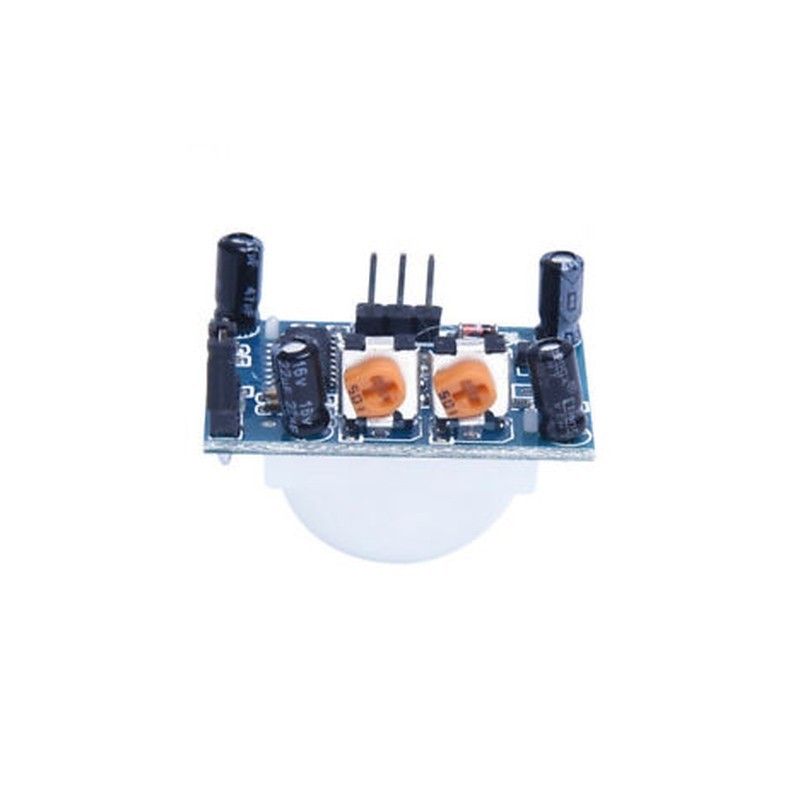

It can sensitivity and the waiting time to adjust
Detection range: about 7 meters / 23 feet
Detection angle: less than 100 degrees
Voltage Network: DC 4.5V-20V
Standby current: less than 50uA
Output voltage level: 3V up / down 0V
Operating temperature: -15~ 70 ℃
Trigger way: non-reputation shutter button / shutter button H reputation
Card Size: about 32 mm X 24mm / 1.3 x 0.9 inch
Package included: 1 x IR detector module
Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /-1-3cm.
