Mini IR infravörös Piroelektromos PIR testmozgás emberi érzékelő modul, K9R7
283060262502
Új termék

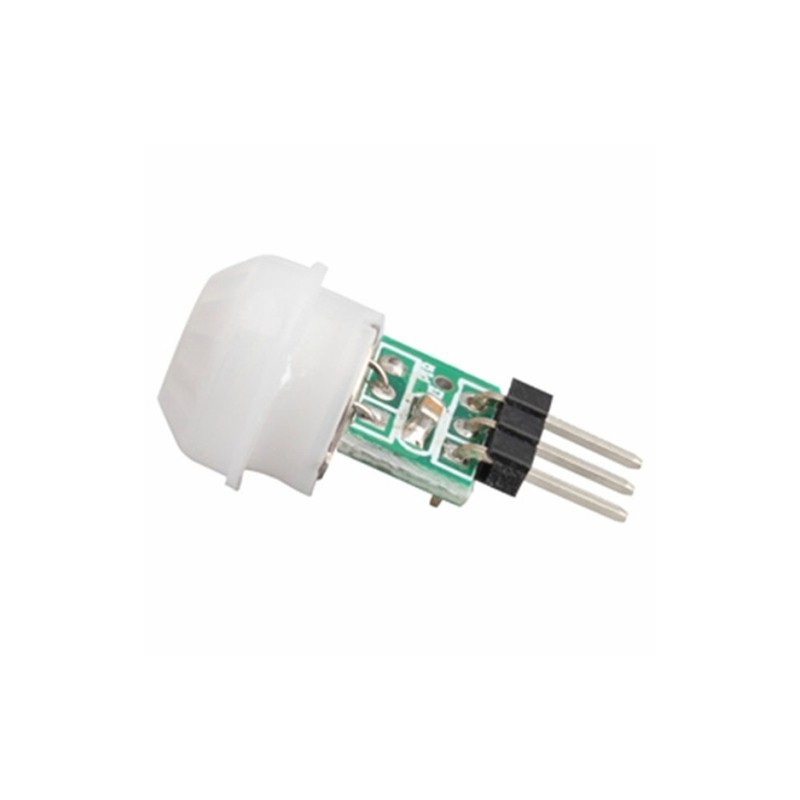

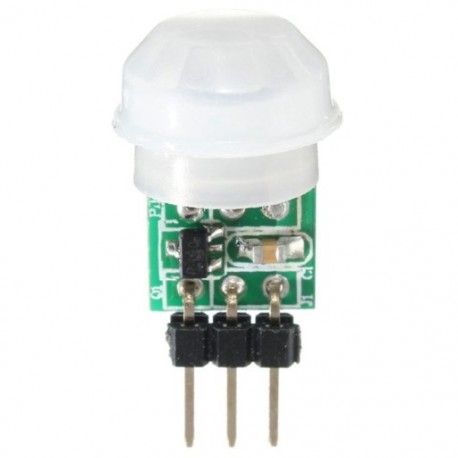

Mini IR Infrared Pyroelectric PIR Body Motion Human Sensor Detector Module K9R7
AM312 body sensors modules: a passive body based on the digital
intelligent infrared technology, automatic control products. High sensitivity,
high reliability. Widely used in various auto-sensing electrical equipment.
Immunity enhancement, internal use of digital signal processing, direct high-low output.
Repeatable trigger: the sensor output high after, the delay period,
if there is human activity in its sensing range, the output will remain high
until the people left after the delay, it becomes low (ie: sensor module detects the
human body every activity will be automatically extended a period of time delay,
and to the last activity time as the starting point of the delay time).
Working voltage: DC 2.7-12V;
Static power consumption: Less than 0.1mA;
Delay time: 2 seconds;
The blocking time: 2 seconds;
Sensing range: Less than equal 100 degree cone angle, 3-5 m; (required depending on the lens)
Working temperature: -20 - 60 degree
PCB Dimensions: 10mm x 8mm
Total size: Approx. 12mm * 25 mm
Module Lens: Small lens
colour: White
Material: PC
Package Contents:
1 * Human Sensor Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
