1x R8 ER32 Collet Chuck tartó W / 11db CNC eszterga rugós maró készlet

Specifications:Collet Chuck
Model: R8-ER32
Material: Metal
Size: 16cm/6.3 inch
R8 spindle
Drawbar thread : 7/16
ER32 clamping range :1-20mm
Spanner/wrench1X 45-52
Suitable For: R8 dedicated machine

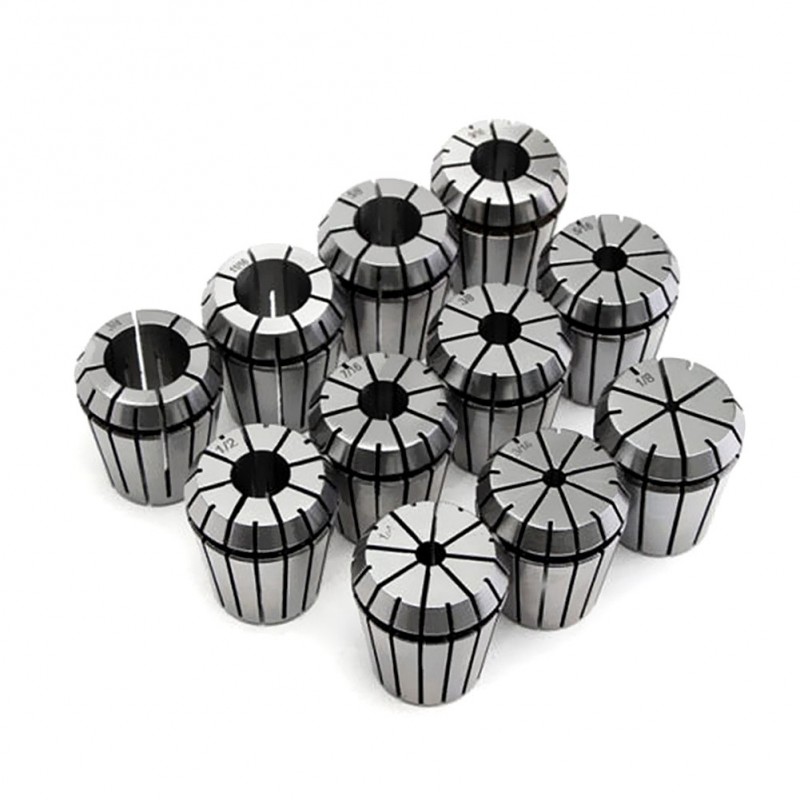

ER32 Spring Collet Set
Material:high grade spring steel
Color:steel color
Type:ER32
Length:39mm
Diameter:32mm
Inner diameter: 3mm(1/8 )/5mm(3/16)/6mm(1/4)/8mm(5/16)/10mm(3/8)/11mm(7/16)
13mm(1/2)/14mm(9/14)/16mm(5/8)18mm(11/14)/19mm(3/4)
Features:-This is a new precision collet chuck holder for professionals and hobbyists demanding.
-Available in the BT ER extension rod handle, can be used for clamping drill,
milling cutter, straight shank tool.
-Collet must be assembled into the clamping nut before inserting into the chuck.
-Performance stability, high accuracy.
-Ease of operation and high quality work results.
Note:1. Before using this tool, please measurement tool deflection, tool deflection accuracy exceeds 0.01MM,
please correct before cutting.
2. The tool extends the length of the chuck as short as possible, the tool extends the amount of time longer
if extended, please cut their own speed, feed rate or cutting the amount.
3. If the cutting of abnormal vibration or sound, cut spindle speed and depth of cut to improve the situation
so far.

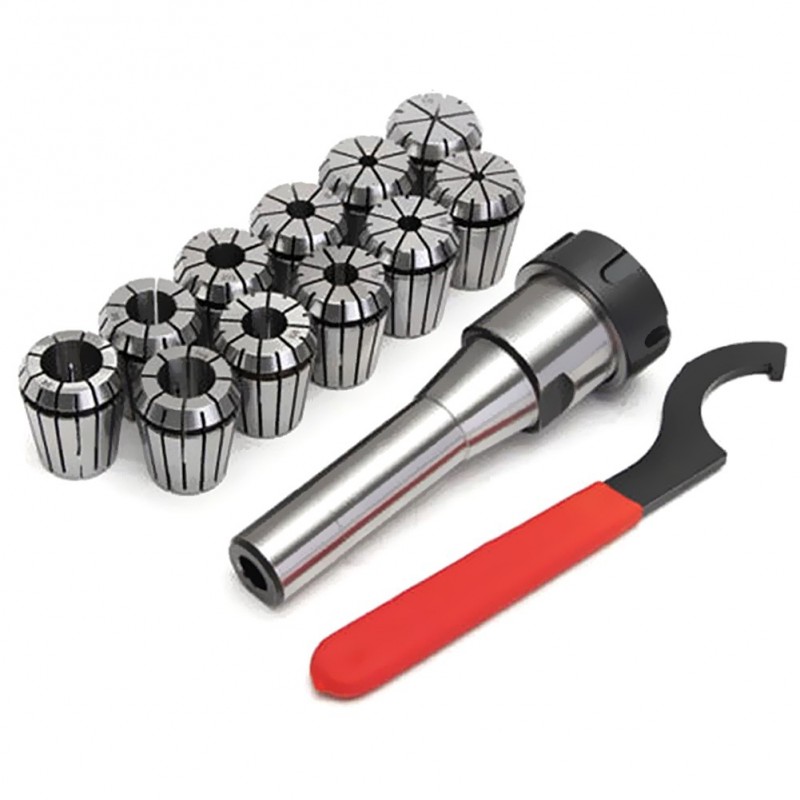

Packing Included:1 x R8-ER32 Collet Chuck
1 x Wrench
11x ER32 Spring Collet Set
