2X (1980 optikai érzékelő fejlesztő eszközök, TSL2591, nagy dinamikus digitális fény R1G5

2X(1980 Optical Sensor Development Tools TSL2591 High Dynamic Digital Light R1G5

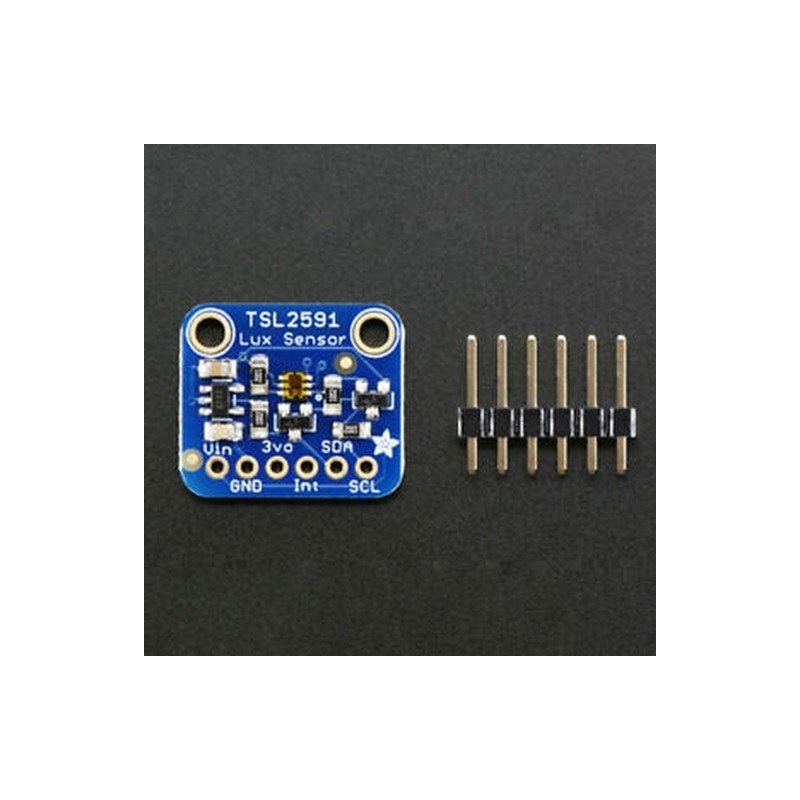

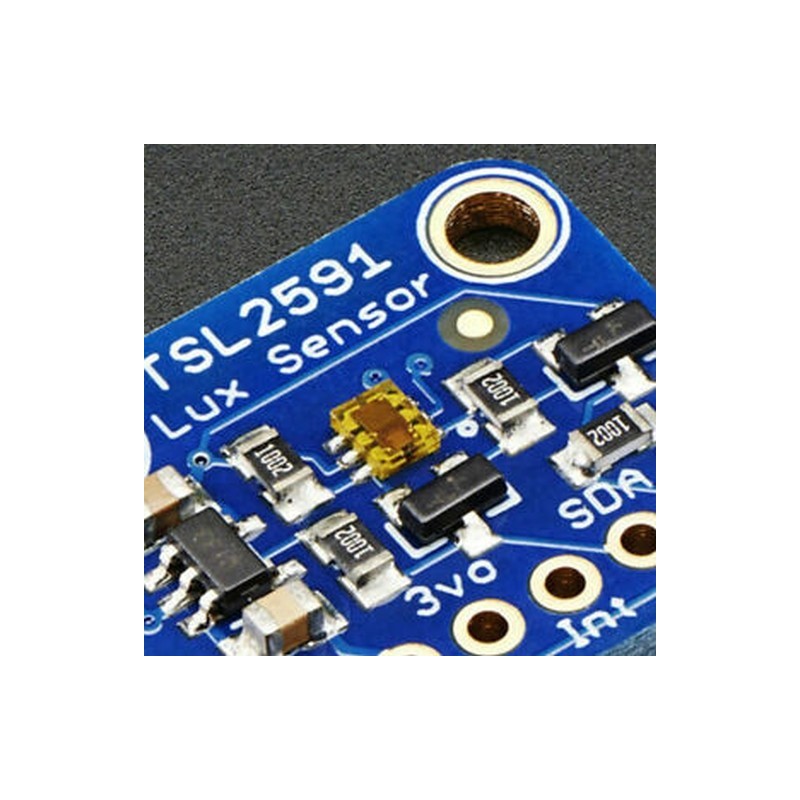

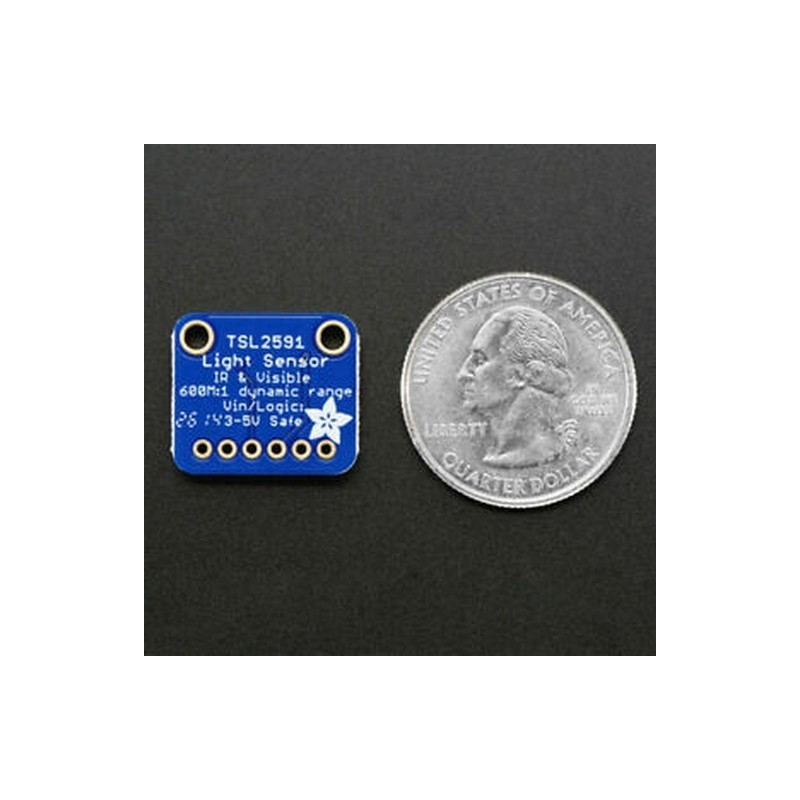

2X(TSL2591 light sensor module has a very high-range digital light sensor:ideal for a wide variety of use scenarios.
Compared to conventional photoresistors, the TSL2591 light sensor enables the calculation of the exact illuminance in lux and can be configured for use in the measurement range from 188 ÎĽLux to 88,000 lux.
The module has both an IR sensor and one that captures the entire light spectrum. The diodes can be controlled separately so that it is possible to measure the infrared component, the entire spectrum or only the visible part.
The sensor is controlled via I2C. Since the sensor already has an integrated A / D converter, the sensor can also be used by microcontrollers that do not have an analog input and can be used, for example. also drive from the Raspberry Pi. Please note that the 7-bit I2C address of the sensor (0x29) can not be changed in contrast to the predecessor TSL2561. The board has a voltage regulator and can be operated with 3.3V - 5.0V.
The enclosed pin header can be soldered on demand.
color: blue
Material: PC metal
Package Contents:
1*Sensor Module
6*pin)
