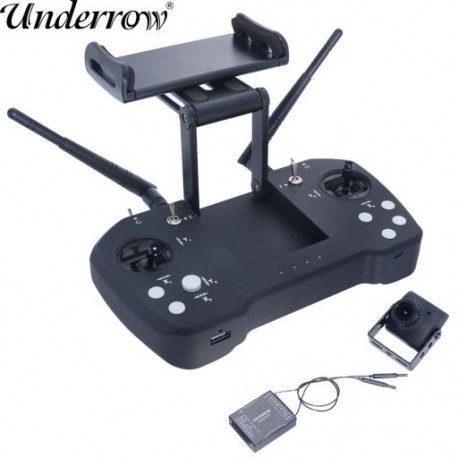

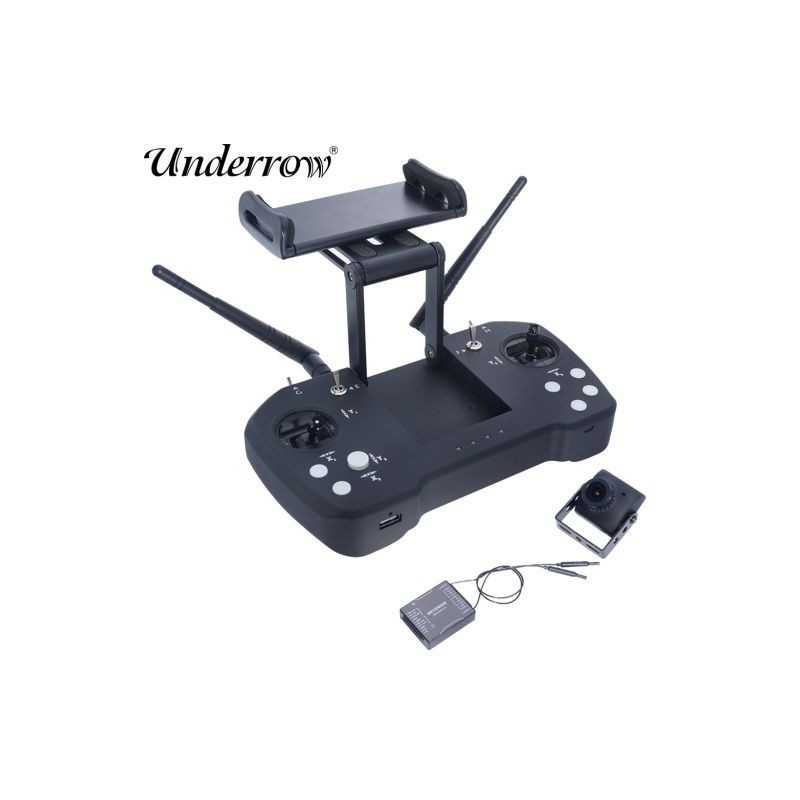

Fekete szín - Skydroid T12 távirányító mini kamerával 20 km digitális térkép átvitel távirányító kamera

1.Product characteristic 1.1 Dual antenna plus Dual module with control of
algorithm to ensure reliable communication by full angle high gain antenna. Also
thanks to latest FHSS(Frequency Hopping Spread Spectrum)technology to achieve
perfect control of the FUAV and operation of camera.1.2 Tx and Rx output sent
flight data to ground station. Fully maximize advantages of 2.4G to solve the
unstable and interference problem of 433Mhz and 915Mhz
1.3 Integrated internal broadcast station.1.4 adjust parameter anytime
through App (FUAV Helper).1.5 Link by USB cable or Bluetooth. Also support S.
Bus, PPM, PWM, I2C serial port and expandable.1.6 Flight parameter can be
adjusted through App in your phone. It can be linked by either USB (with OTG) or
Bluetooth. You can change any features over the App, mode (mode 1, 2, 3,4) ,
Nor/Rev, failsafe,Sbus, ppm output and baudrate. Data is saved so that you can
use anytime.
1.7 Base on "Tower" App to make groundstation perfectly matched each other,
larger view on the map. So you may do point to point planning and self
operation. Also one key home return.1.8 Internal 4000mah Li-ion battery can last
for more than 24 hours with 100mw low power consumption . Your phone can be
charged through the micro-USB port.
1.9 Highly integrated data, video and flight controller board. It makes the
size smaller. Aluminium foldable mounting plate. With 360 degree adjustment.1.10
The camera equipped with a 8w super bright LED for better capture image at night
time
T12 FUAV is specially designed for agriculture, video capture, and drone
flying
C) Specification of T12
D. Prepare the first start up
1. Make sure the groundstation (Tx)is fully charged
2. Please check the position of antenna is correctly placed
3. Check the firmware is update
2. How to set parameter through the Apk
2.1 Check battery is fully charged and both reciever(Rx) and
groundstation(Tx) are
2.2 Only support Android system at the moment
2.3 Please install APK through official website (www.fuav.xin) Download
"Device Helper"
2.4 Turn on the Tx by short press once then long press to turn on. Open
Bluetooth on Android phone and search T12-xxx pairing code is 1234
2.5 Open your "Device Helper" to adjust the followings:
2.5.1 Adjust Parameter: Nor/Rev, ATV, Channel, failsafe
2.5.2 Hand Settings: Mode 1,2,3,4
2.5.3 Other option : Select output Sbus, PPM and Baud Rate
2.5.4 Update Device: Online firmware update. Use Bluetooth to update Tx,
USB for Rx
2.6 adjust parameter of Tx. Apk read the data of the Tx and Rx
colour: black
Material: ABS plastic
size: 15cmx15cmx10cm
Package Contents:
1 x T12 remote control
1 x receiver
1 x night vision camera remote control
1 x digital transmission Model1 right hand throttle
1 x standard definition digital image transmission
1 x searchlight
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item
in the picture a little different from the real thing. The measurement allowed
error is /- 1-3cm.
