Vízálló ultrahangos modul - 40 kHz vízálló, nem érintkező távolságú ultrahangos érzékelő modul érzékelő

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
40Khz Waterproof Non-Contact Distance Ranging Ultrasonic Sensor Module Detector

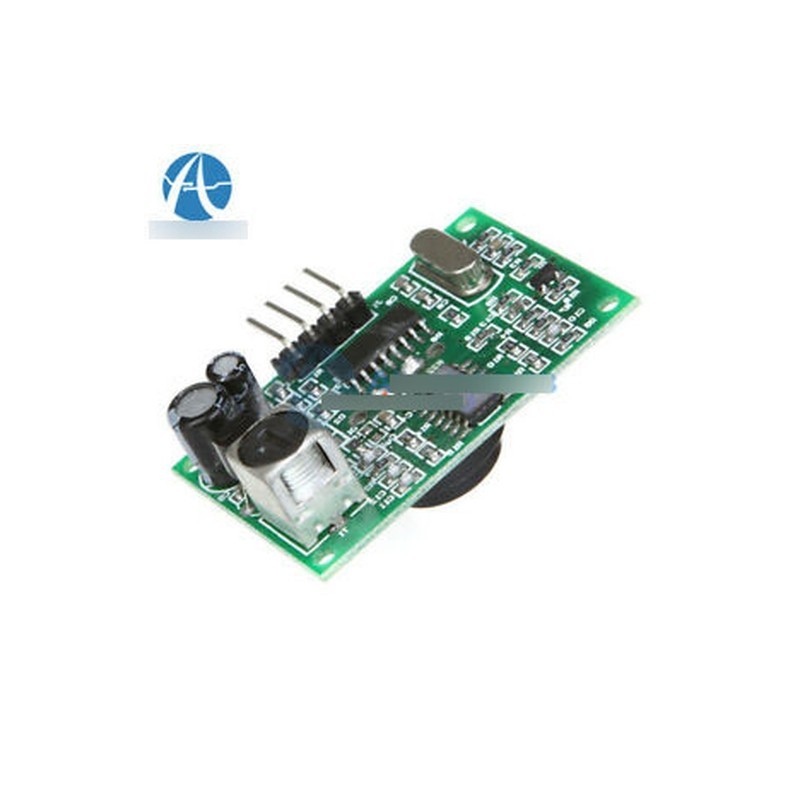

Non-contact Ultrasonic Ranging ModuleFeatures:
High performance non-contact ultrasonic distance sensor module with 4 pin: 5V, RX(Trig), TX(Echo), GND.
Water-proof.
Low voltage and low power consumption.
Small dead zone.
30cm to 3m wide detecting range.
It can be applied for measuring the distance between objects, waterproof ranging occasions, programmable car obstacle avoidance, robot obstacle avoidance, security and industrial control, etc.Note:
Please make sure that there is no object within the minimum detecting distance, i.e. 30cm. Or the measuring result will be inaccurate.Specifications:
Operating voltage: DV 5V
Operating current: less than 15mA
Frequency: 40KHz
Max distance: 3m / 9.8ft
Min distance: 30cm / 11.8in
Accuracy: 1cm
Angle: less than 30 degree
Operation temperature: -10 ~ 60℃
Storage temperature: -20 ~80℃
Item size: 4 * 2.8 * 2cm / 1.57 * 1.1 * 0.79in
Weight: 9g / 0.31oz Package included1 x Non-contact Waterproof Motion Detector Distance Ranging Ultrasonic Sensor ModuleWaterproof Ultrasonic ModuleElectrical properties:

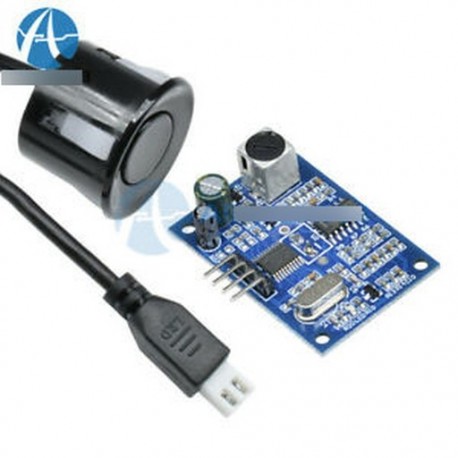

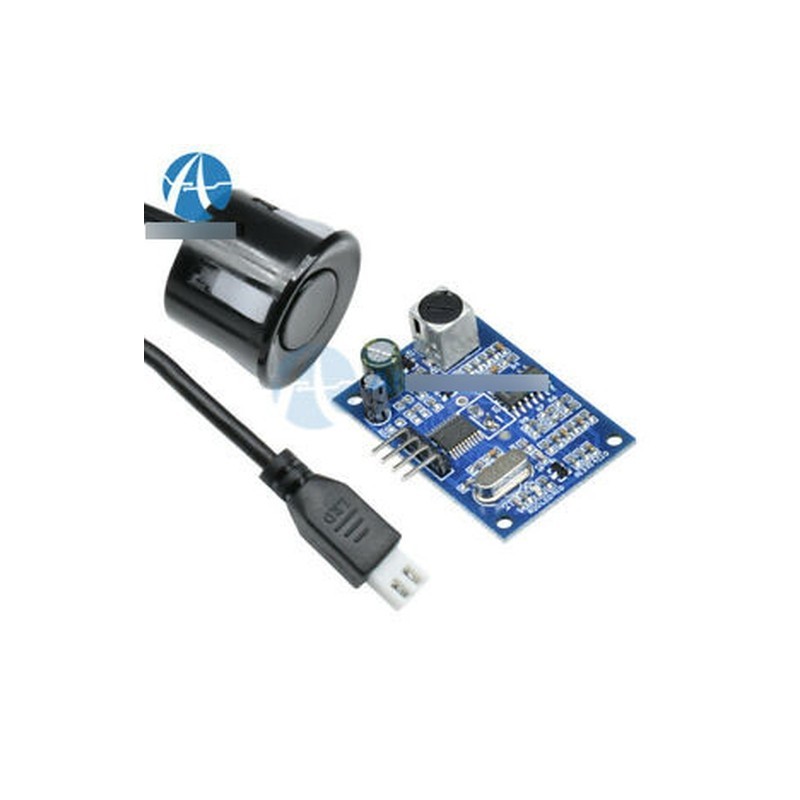

Electrical parameters: JSN-SR04T
Operating voltage: DC 5V
Quiescent current: 5mA
Total current work: 30mA
Acoustic emission frequency: 40khz
Farthest distance: 4.5m
Blind: 25cm

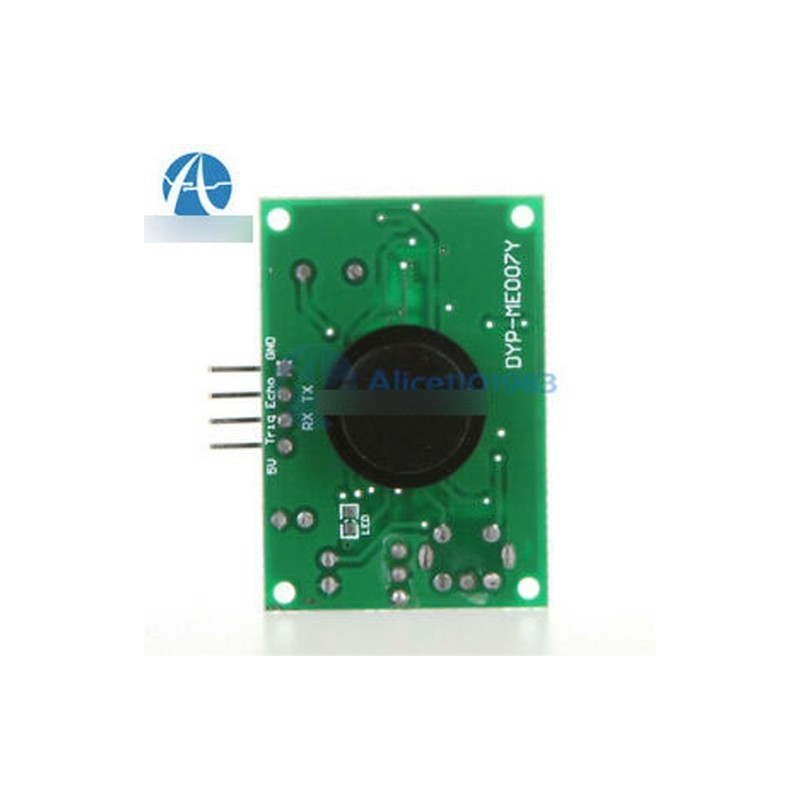

Wiring: 5V (positive power supply)
Trig (control side) RX
Echo (the receiver) TX
GND (negative)
Module size: 41mm * 28.5mm
Resolution: about 0.5cm
Angle: less than 50 degrees
Working temperature: -10 ~ 70 ℃
Storage temperature: -20 ~ 80 ℃Product Features: 1, small size, easy to use;
2, low voltage, low power consumption;
3, high accuracy;
4, strong anti-jamming;
5, integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions.Application: 1, Horizontal distance;
2, obstacle avoidance, automatic control;
3, the object approaches, there is a perceived
4, traffic control;
5, security, industrial control;
6, artificial intelligence, and researchThe basic working principle:(1) using IO port TRIG trigger location, to the high level signal of at least 10us;
(2) module automatically sends 8 40KHz Fang Bo, automatic detecting whether a signal return;
(3) a signal return, a high level is output through the IO port ECHO, the time duration of the high level is
ultrasonic from launch to return. The test distance = (high level time * speed of sound (340M/S)) /2;
This module uses the simple method, a control port with a 10US above high level, can wait for high level
output at the receiving port. An output can drive the timer, when this port is low can read the timer value,
this time for the location of the time, can be calculated distance. So constantly cycle test, that can achieve
the measurement of the value of your mobile.Package Included:1 x Ultrasonic Module Distance Measuring Transducer Sensor Waterproof40Khz Ultrasonic SensorWorking voltage:DC 5V
- Working current:20mA
- Frequency:40KHz
- Measuring range:30cm-3.5m
- Resolution:1cm
- Output signal:5V
- Angle: less than 80 degree
- Module size:40mm*27mm
Package Included:1 x 40Khz Waterproof Ultrasonic Sensor Distance
