Kettős LED késleltetés időzítő relé - DC 12V kettős LED többfunkciós ciklus időzítő relé modul késleltetési idő

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

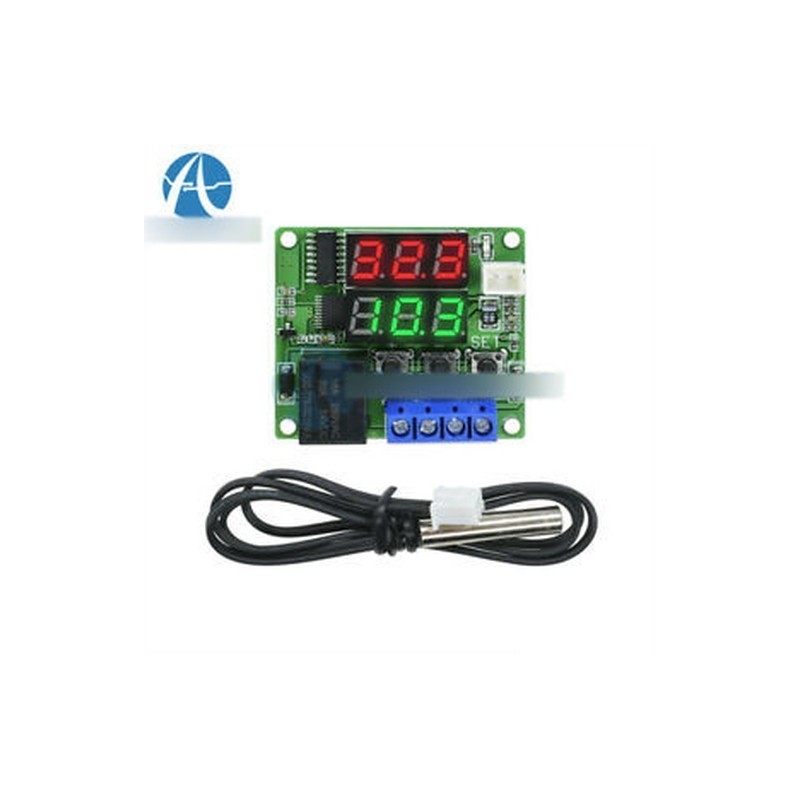

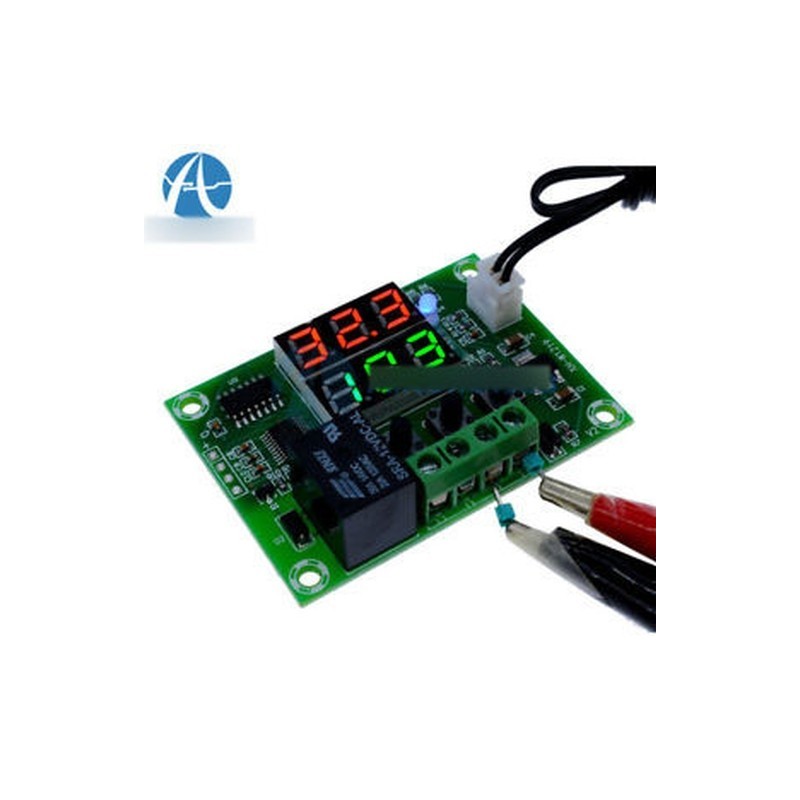

DC 12V Dual LED Multi-function Cycle Timer Relay Module Delay Time Switch
Dual LED Delay Timer Relay Description:

Specifications Model: W1209S
Dimensions: 48 * 40mm
Temperature control mode: ON / OFF
Temperature range :-50-120
Control accuracy: 0.1
Hysteresis accuracy: 0.1
Refresh rate: 0.5S
High temperature protection 0-110
Supply voltage: for DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: for DC 12V
Output power: 20A relay
Measurement input: NTC (10K 0.5% ) Waterproof Sensor
Environmental requirements: -10 ~ 60 Humidity 20% -85%

Parameters

NTC 10K 1% 3950 Cable
Features:Stainless steel sheath and waterproof
Measurement range: -20 to 105 °C
Length of wire: 1 meter
Size of probe: 5 x 25 mm
Output 2 wires
Type: NTC 10k±1% 3950
measure environmental temperatures using arduino ADC and this 10k NTC LINK
Resistance to temperature conversion table LINK
B-constant : 3380K -/ 1%
Typical Dissipation Constant 5mW/ °C
Probe insulation: >100MOhm
Peak Voltage sustain time: 2 seconds, AC1800V 1mA 2 seconds
Stress sustain: 9.8N (1kgF) for 1 minute no deformation


Package Included: 1PCS * NTC Thermistor Temperature Sensor Waterproof Probe Cable 1M 10K 1% 3950
