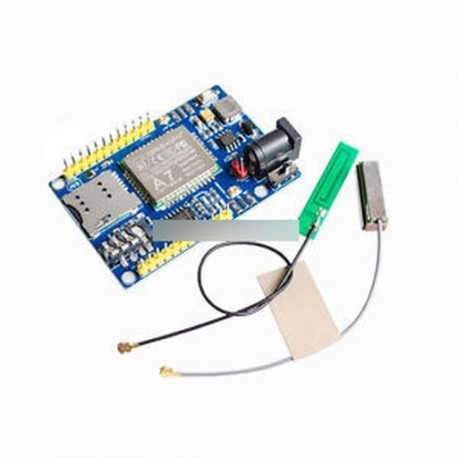

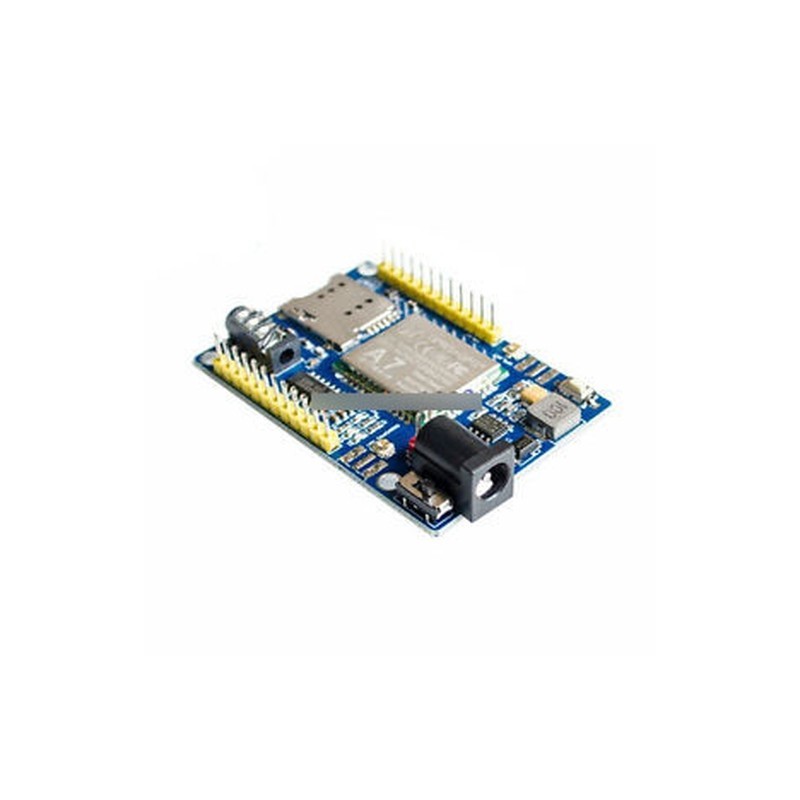

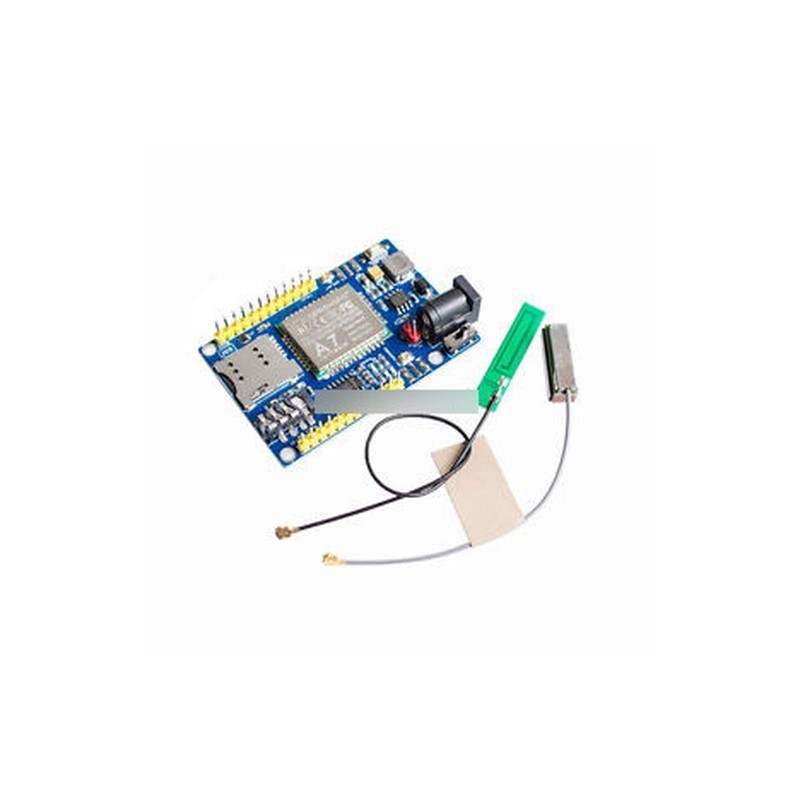

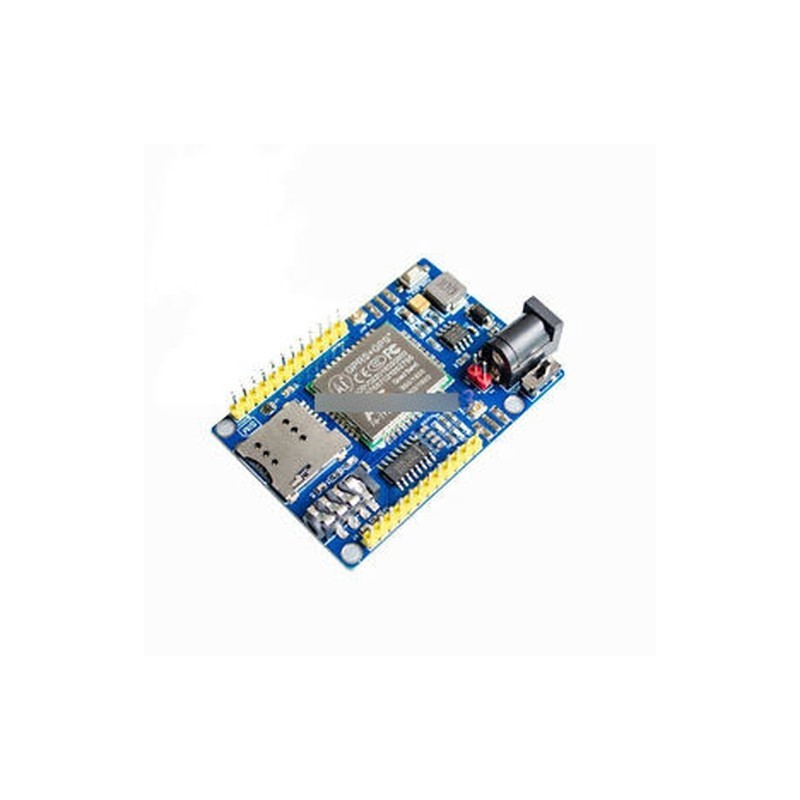

GPS GSM GPRS A7 Module SMS Voice Development Minimum System Board for STM32 51
Description:A7 GPRS/GPS Module
Dimensions 22.8 X 19.8 X 2.5mm;
Operating temperature -30 ℃ to 80 ℃;
Operating Voltage 3.3V-4.2V;
Power voltage> 3.4V;
Standby average current 3ma less;
Support the GSM / GPRS four bands, including 850,900,1800,1900MHZ;
Support China Mobile and China Unicom's 2G GSM network worldwide;
GPRS Class 10;
Sensitivity <-105;
Support voice calls;
Support SMS text messaging;
Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps;
Supports standard GSM07.07,07.05 AT commands and extended commands Ai-Thinker;
Supports two serial ports, a serial port to download an AT command port;
AT command supports the standard AT and TCP / IP command interface;
Support digital audio and analog audio support for HR, FR, EFR, AMR speech coding;
Support ROHS, FCC, CE, CTA certification;
SMT 42PINPackage included:1*GPRS GPS GSM A7 Module SMS Voice Development Minimum Sys
