A6 GPRS / GSM adapter kártya Ante ... - A6 Proto pajzs GPRS / GSM modul adapter Quad-band Antenna 900 1800 1900MHZ

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
A6/A7 Proto Shield GPRS/GSM Module Adapter Quad-band Antenna 900 1800 1900MHZ

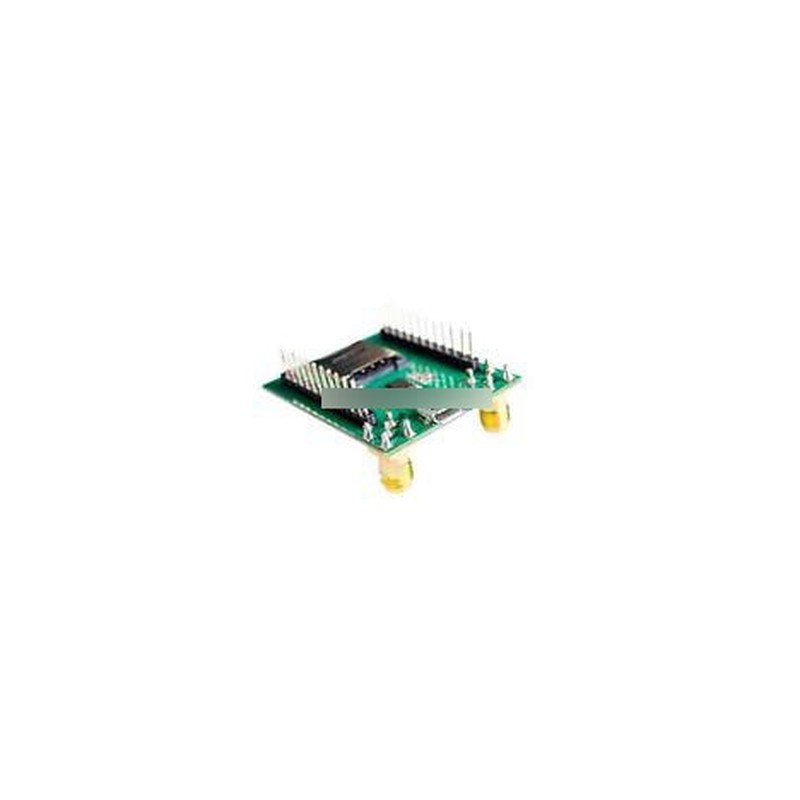

A6 A7 proto Shield
100% brand new and high quality
Proto Screw Shield Board For Arduino Compatible Improved version support A6 A7
Dimension:6.7cm x 5.2cm x0.1cm
Quantity:1PCPackage includes:1 x Proto Screw Shield Board For Arduino Compatible Improved version support A6
A6 GSM/GPRS Quad-band
Features: 100% Brand new and good quality.
Dimensions :22.8 X 16.8 X 2.5mm
Working temperature -30 ℃ to 80 ℃
Working voltage 3.3V-4.2V
Power voltage> 3.4V
Standby average current 3ma less
Support GSM / GPRS quad-band, including 850,900,1800,1900MHZ
Support China Mobile and China Unicom's 2G GSM network worldwide
GPRS Class 10
Sensitivity <-105;
Support voice calls
Support SMS text messaging
Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps
Supports standard GSM07.07,07.05 AT commands and extended commands Ai-Thinker
Supports two serial ports, one serial port to download an AT command port
AT command supports the standard AT and TCP / IP command interface
Support digital audio and analog audio support HR, FR, EFR, AMR speech coding SMT 42PIN Document link:https://www.adrive.com/public/VUWkJ8/FZ2041% 20A6% 20GPRS% 20GSM% 20% 20AT% 20Commands% 20V1.01.pdf Main features
Quad-band:850/900/1800/1900 MHz
GPRS multi-slot:12, 1 to 12 may be configured
GPRS mobile station:Class BCompatible with GSM Phase 2/2
Class 4 (2W @ 850/900 MHz)
Class 1 (1W @ 1800 / 1900MHz)
Current consumption
1.3mA @ DRX = 5
1.2mA @ DRX = 9
AT command control
Standard GSM07.07,07.05 AT commands and extended commands Ai-ThinkerSIM Application ToolkitData transmission
GPRS Class 10
Up 85.6 kbps (upstream) & 42.8Kbps (downlink)
PBCCH supportCoding scheme
CS 1, 2, 3, 4
Support CSD
Up 14.4 kbps
Support USSDStack
PPP / TCP / UDP / HTTP / FTP / SMTP / MUXSMS
To-point messaging
Cell Broadcast messages
Text / PDU mode
A speech coding mode
Half Rate (HR)
Full Rate (FR)
Enhanced Full Rate (EFR)
AMRAudio processing mechanism
Echo cancellation
Echo suppression
Noise SuppressionInterface
SIM / USIM card
3V / 1.8V
UART
Analog audio interface
2-way (a road built Class AB audio amplifier)
RTC
CE / FCC / RoHS / CTA CertificationPackage Included:

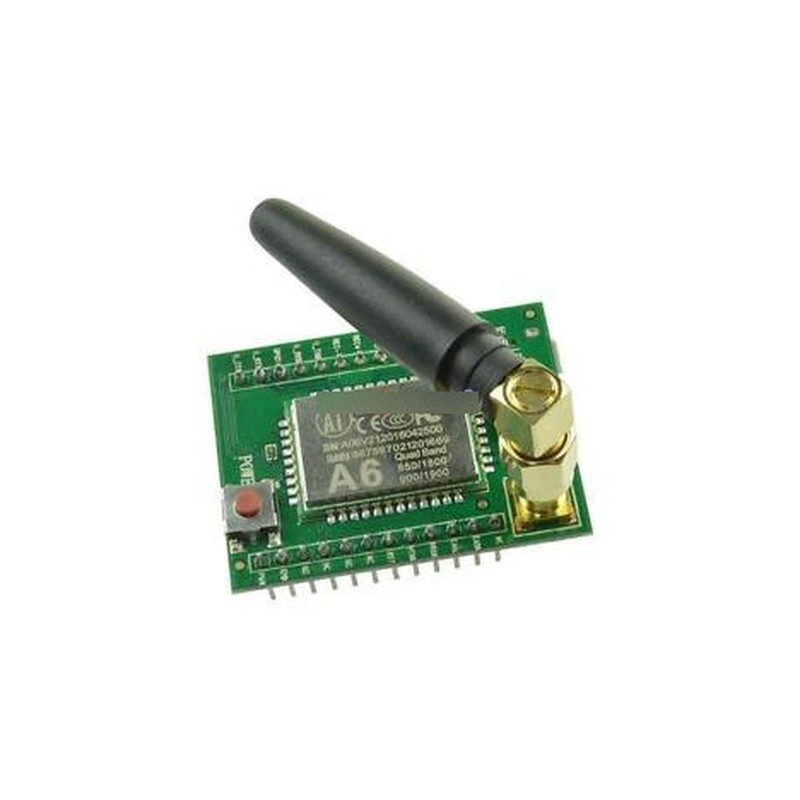

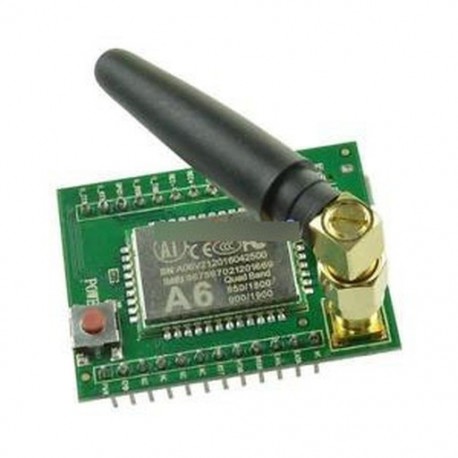

1 X A6 GPRS GSM Module(Note:module only,no board）A6 GPRS/GSM Adapter Board Antenna
Features:
Dimensions 22.8 X 16.8 X 2.5mm
Working temperature -30 ℃ to 80 ℃
Working voltage 3.3V-4.2V
Power voltage> 3.4V
Standby average current 3ma less
Support GSM / GPRS quad-band, including 850,900,1800,1900MHZ
Support China Mobile and China Unicom's 2G GSM network worldwide
GPRS Class 10
Sensitivity <-105;
Support voice calls
Support SMS text messaging
Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps
Supports standard GSM07.07,07.05 AT commands and extended commands Ai-Thinker
Supports two serial ports, one serial port to download an AT command port
AT command supports the standard AT and TCP / IP command interface
Support digital audio and analog audio support HR, FR, EFR, AMR speech coding
SMT 42PIN Document link: https://www.adrive.com/public/VUWkJ8/FZ2041% 20A6% 20GPRS% 20GSM% 20% 20AT% 20Commands% 20V1.01.pdf
Package Included:
1 X A6 GPRS GSM Module Adatper Plate1x antenna
A7 GSM / GPRS ModuleFeatures:Dimensions 22.8 X 19.8 X 2.5mm;
Operating temperature -30 ℃ to 80 ℃;
Operating Voltage 3.3V-4.2V;
Power voltage> 3.4V;
Standby average current 3ma less;
Support the GSM / GPRS four bands, including 850,900,1800,1900MHZ;
Support China Mobile and China Unicom's 2G GSM network worldwide;
GPRS Class 10;
Sensitivity <-105;
Support voice calls;
Support SMS text messaging;
Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps;
Supports standard GSM07.07,07.05 AT commands and extended commands Ai-Thinker;
Supports two serial ports, a serial port to download an AT command port;
AT command supports the standard AT and TCP / IP command interface;
Support digital audio and analog audio support for HR, FR, EFR, AMR speech coding;
Support ROHS, FCC, CE, CTA certification;
SMT 42PIN

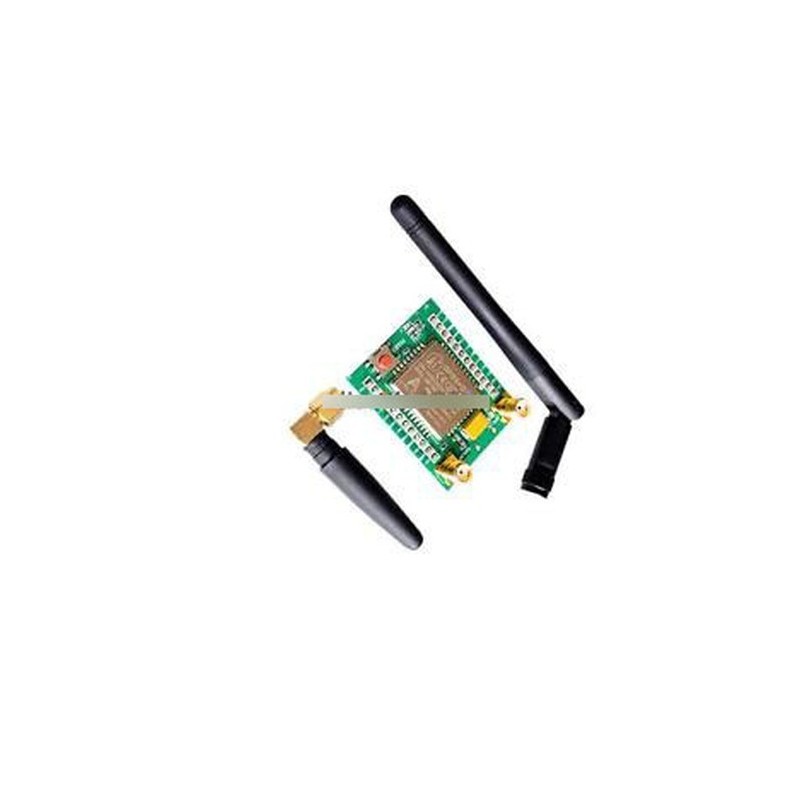

Package included1 X GSM Module GPRS Module A7/SMS/Voice/Development Board Date TransmissionA7 GPRS/GSM Adapter Board Antennal Dimensions 22.8 X 16.8 X 2.5mm;
l Operating temperature -30 ℃ to 80 ℃;
l Operating Voltage 3.3V-4.2V;
l Power voltage> 3.4V;
l Standby average current 3ma less;
l support the GSM / GPRS four bands, including 850,900,1800,1900MHZ;
l GPRS Class 10;
l Sensitivity <-105;
l support voice calls;
l support SMS text messaging;
l Support GPRS data traffic, the maximum data rate, download 85.6Kbps, upload 42.8Kbps;
l Supports standard GSM07.07,07.05 AT commands and extended commands Ai Thinker;
l supports two serial ports, a serial port to download an AT command port;
l AT command supports the standard AT and TCP / IP command interface;
l support digital audio and analog audio support for HR, FR, EFR, AMR speech coding;
l support ROHS, FCC, CE, CTA certification;
l SMT 42PIN package;Package Included:
1 x A7 GPRS
