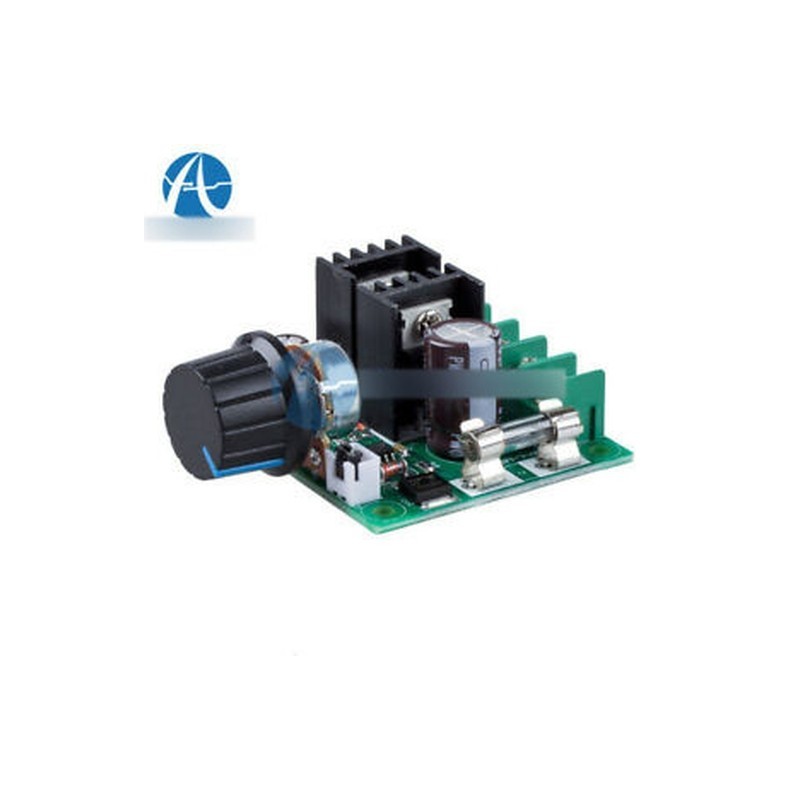

10A PWM motor fordulatszám-szabályozó - 5V-35V / 12V ~ 40V PWM 5A / 10A 20khz LED egyenáramú motorvezérlő

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!
5V-35V/12V~40V PWM 5A/10A 20khz LED DC Motor Controller Speed Regulation Dimmer1. 5V-35V 5A Speed Control Switch Product parameters:Operating voltage: DC4.5V-35V
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz
Size: 30mm x 26mm x 14mm (Without Handle)Precautions:DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!
DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.Package Included:1 x 5V-35V Speed Control Switch2. 10A PWM Motor Speed Controller

Description:Controls the speed of a DC motor with this controller High efficiency, high torque and low heat generation With reverse polarity protection,high current protection Operating
Voltage: DC 40V 12V DC Control Power
consumption: 0.01 400W
Static current: 0.02 A (Standby)
PWM Sampling rate: 0% -100%
PWM frequency: 3 kHz
Dimension (L x W x H): approx. 73 x 60 x 27 mm
material: plastic, metalNote:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
The measurement allowed error is /-1-3cm.Package included:1 x Speed Controller
