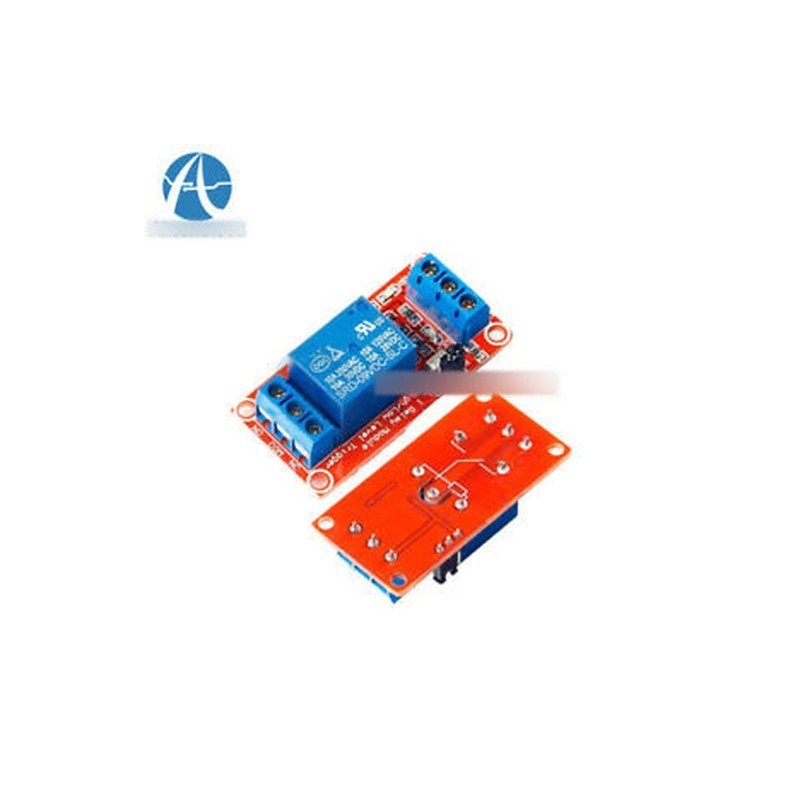

1 csatorna DC 9V optocsatoló-meghajtó árnyékolt magas alacsony szintű relé modul

1 Channel DC 9V with Optocoupler Driver Shielded High Low Level Relay Module
DC 9V 1Channel Optocoupler Driver Shielded High Low Level Relay Module
Features:The module uses genuine quality relay, normally open interfacesUsing SMD optocoupler isolation, driving ability, stable performanceThe module can be high or low by a jumper setting triggerFault-tolerant design, even if the control line is broken, the relay will not operateThe power indicator (green), the relay status indicator (red)The interface design of human nature, all interfaces are available through a direct connection terminal leads, very convenientParameter:Maximum load: AC 250V/10A, DC 30V/10ATrigger current: 5mAWorking voltage: 9V (we have other opitions)Module size: 50 x 26 x 18.5mm (L x W x H)Four mounting bolts holes, diameter 3.1mm
　Module interface:DC : positive power supply (VCC)DC-: negative power supply (GND)IN: can be high or low level control relay
　Relay outputs:NO: normally open relay interfaceCOM: Common Interface RelaysNC: normally closed relay interfaceHigh and low level trigger options:It is low level trigger when jumper connect to LOW pinIt is high level trigger when jumper connect to HIGH pinPackage Included:1pcs x Relay Module
