Pro Mini 328 Mini 3.3V / 8M 5V / 16M ATMEGA328 ATMEGA328P-AU 3.3V / 8MHz 5V / 16MHZ for Arduino
Pro Mini 328 Mini 3.3V/8M 5V/16M ATMEGA328 ATMEGA328P-AU 3.3V/8MHz 5V/16MHZ for Arduino

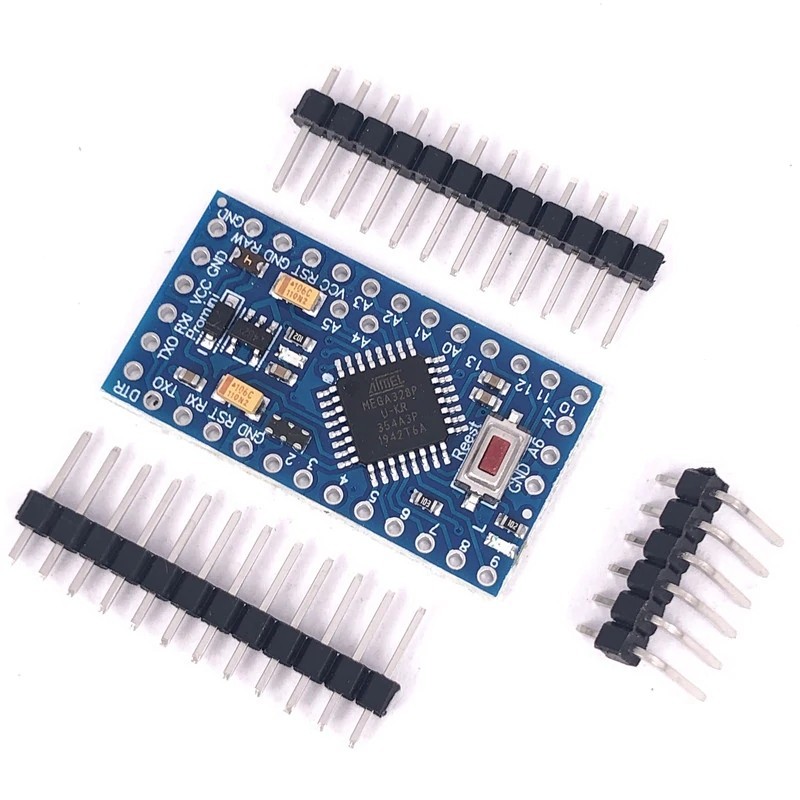

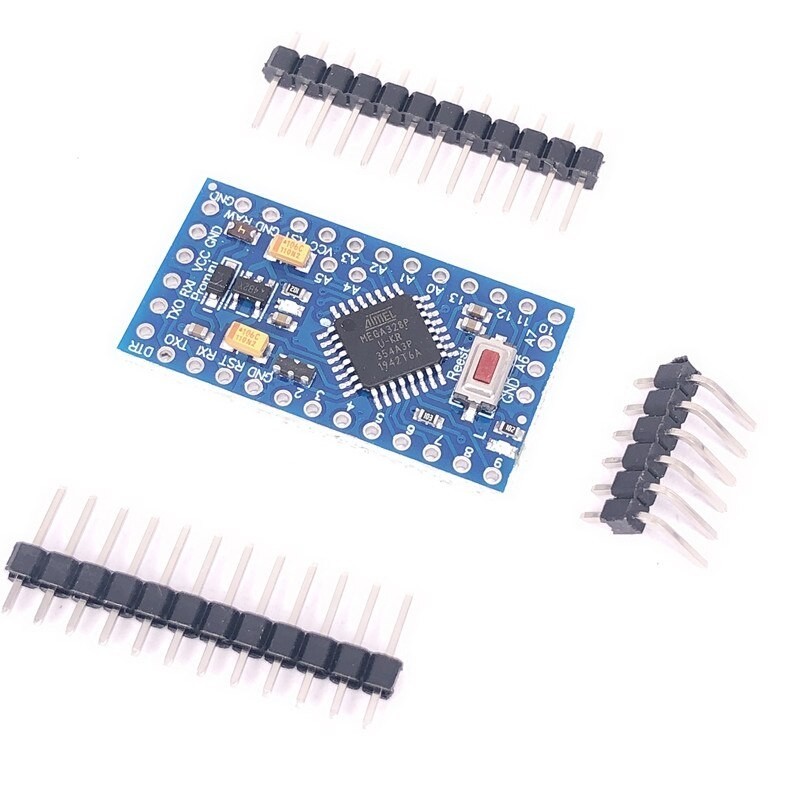

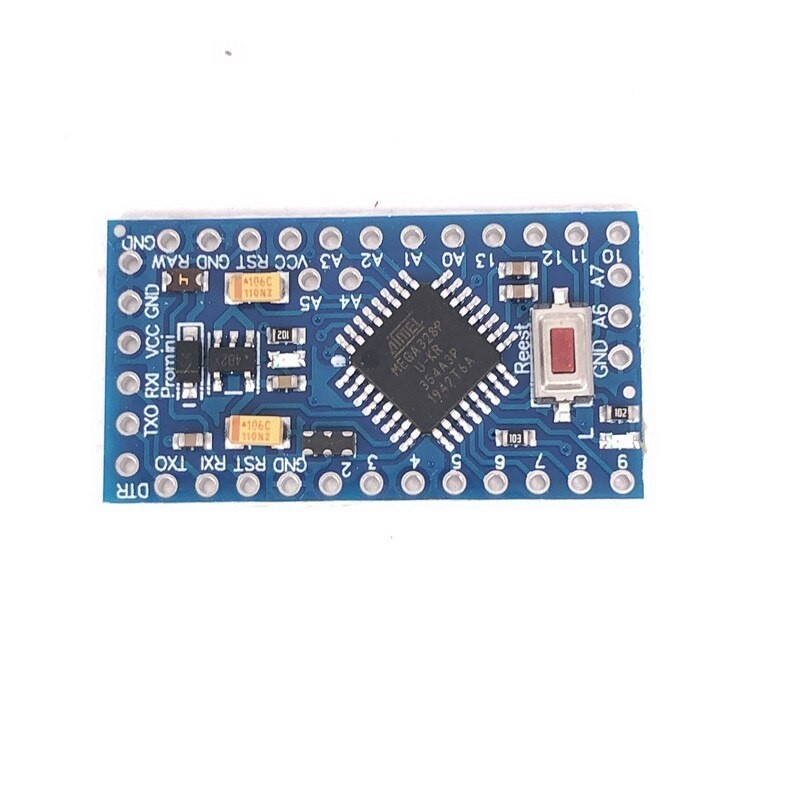

This is the professional version of the Mini Pro is a microcontroller board, has its good burn Bootloader, without the user having to buy ISP burner were burning, easy to use. It has 14 digital input / output pins (of which 6 can be used as PWM outputs), 8 analog inputs (increase A6 A7 with two analog input ports than the regular version), an 8MHz resonator, a reset button, the installation hole pin head.

Technical parameters:

1.14 digital input / output port RX, TX, D2 ~ D13,
2.8 analog inputs A0 ~ A7
3.1 pairs TTL level serial port transceiver RX / TX
4.6 PWM ports, D3, D5, D6, D9, D10, D11
5. Microcontroller using Atmel Atmega328P-AU
6. Support serial download
7. Support for external 3.5V ~ 12V DC power supply (using RAW and GND power port)
8. Support 9V battery
9. 8MHz clock frequency
10. Dimensions: 33.3 * 18.0 (mm)
