5A 90W PWM 12V DC motorvezérlő modul DC-DC 4,5V-35V állítható sebességszabályozó vezérlő kormánykapcsoló 24V

5A 90W PWM 12V DC motorvezérlő modul DC-DC 4,5V-35V állítható sebességszabályozó vezérlő kormánykapcsoló 24V

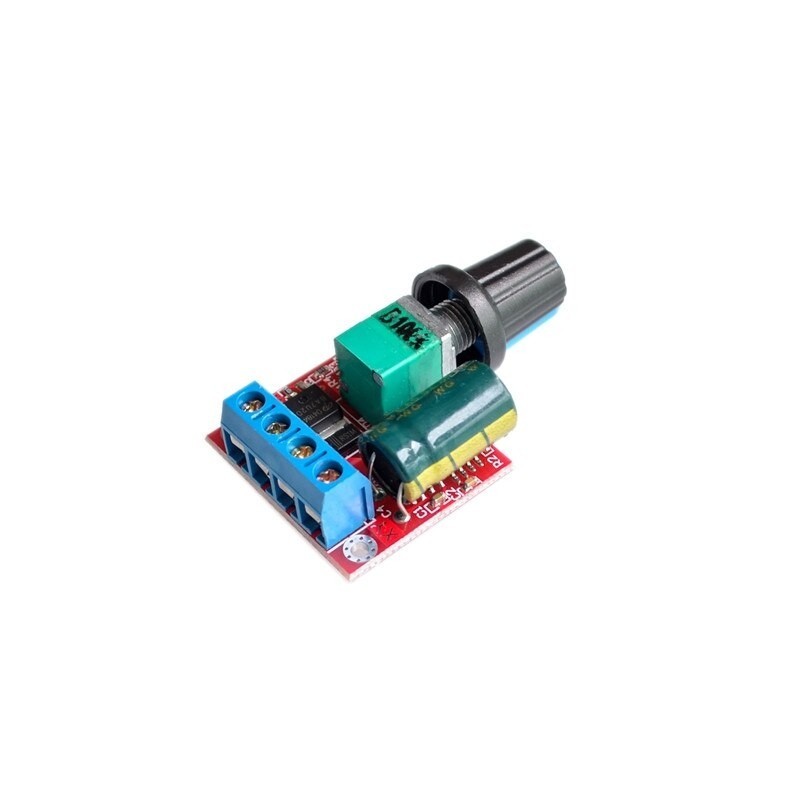

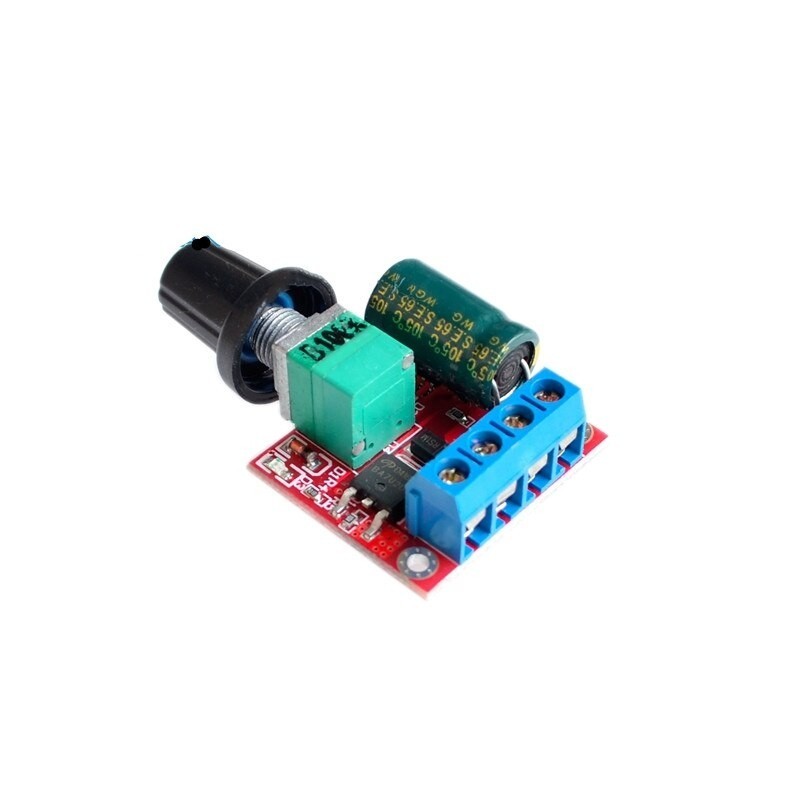

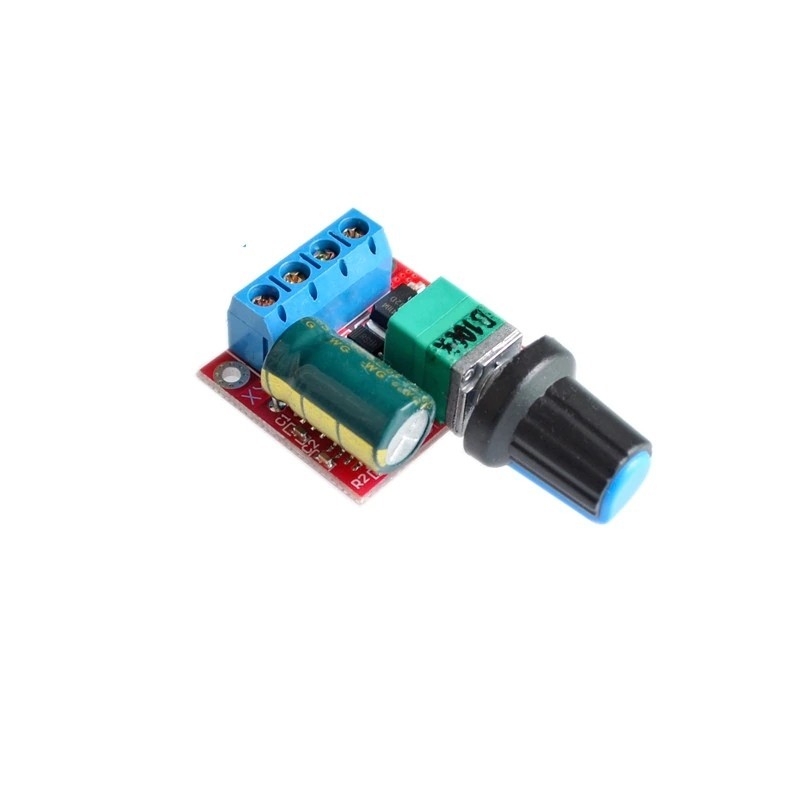

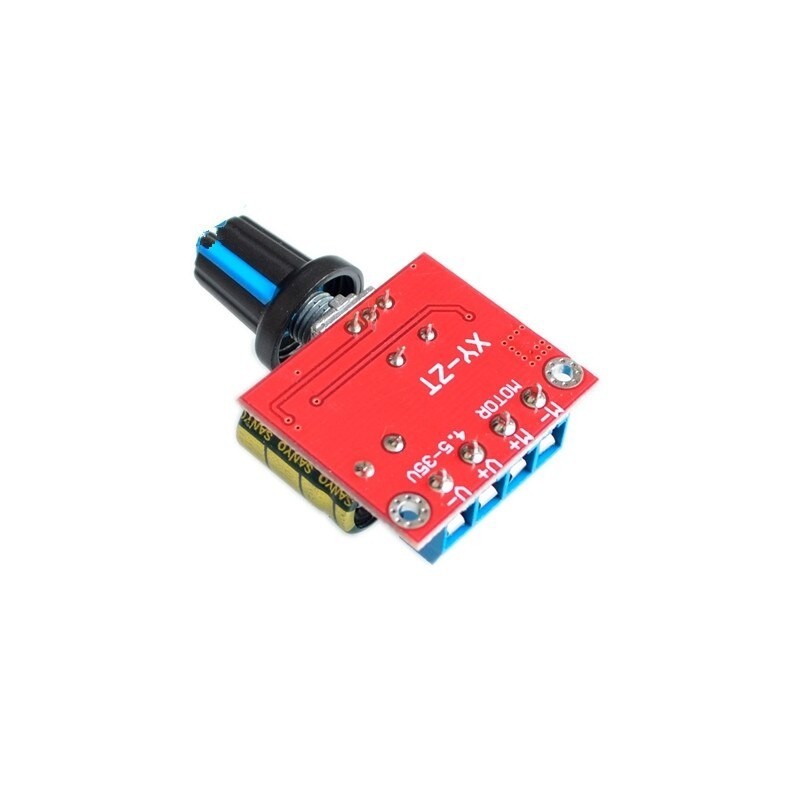

5A 90W PWM 12V DC Motor Speed Controller Module DC-DC 4.5V-35V Adjustable Speed Regulator Control Governor Switch 24V
5A PWM:
Operating voltage: DC4.5V-35V
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz Size: 30mm x 26mm x 14mm (Without Handle)
Precautions: DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn! DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
