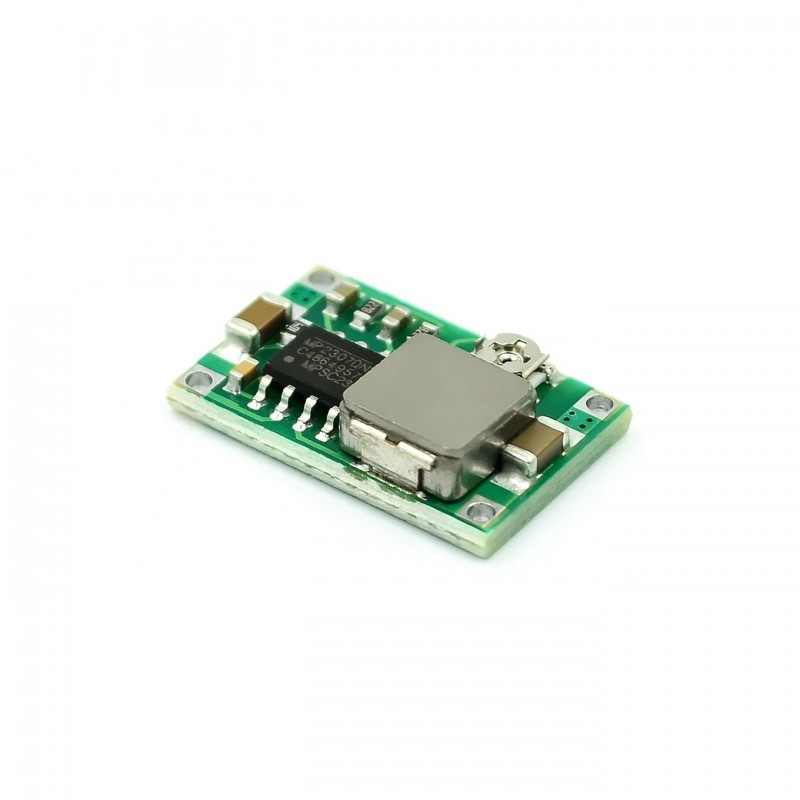

Mini360 DC-DC Buck Converter 4,75 V-23 V - 1 V-17 V 17x11x3,8 mm SG125-SZ modul

32412120464

Új termék


Notice: The new tracking number for China Post Ordinary Small Packet Plus can be traced only befor it arrive the airport of your country,please choose China Post Air Mail if you want a full tracking info.

Tracking info of  China Post Ordinary Small Packet Plus can be check here : www.17track.net/en
Super small size DC - DC synchronous rectification buck module

Areas of application:
Model aircraft dedicated DC - DC step-down module (2 s ~ 5 s polymer li-ion battery), DIY mobile power supply, car power supply, communication power supply equipment, a variety of occasions of volume and weight have strict requirements.

Technical parameters:
Model name
Mini - 360 (super small size DC - DC synchronous rectification buck module)
Nature of the module
The isolation step-down
Rectifying way
The synchronous rectifier
The input voltage
4.75 V - 23 V
The output voltage
1.0 V - 17 V
The output current
Peak 3 A and 1.8 A long time
Conversion efficiency
96% (highest)
Switching frequency
340 KHZ
The output ripple
30 mv (light)
Load regulation
Plus or minus 0.5%
Voltage regulation
Plus or minus 2.5%
Working temperature
- 40 to 85
The peripheral size
17 * 11 * 3.8 (length * width * height) (mm)

Features: use a body shaping power inductor and synchronous rectifier control chip, a smaller, more efficient.

Bővebb leírás

-142 / 250 / Gyorsan Fogyó termék

101 Ft‎

-65%

288 Ft‎

Egyéb infó

Mini360 DC-DC Buck Converter 4,75 V-23 V - 1 V-17 V 17x11x3,8 mm SG125-SZ modul
Mini360 DC-DC Buck Converter Step Down Module 4.75V-23V to 1V-17V 17x11x3.8mm SG125-SZ

Notice: The new tracking number for China Post Ordinary Small Packet Plus can be traced only befor it arrive the airport of your country,please choose China Post Air Mail if you want a full tracking info.

Tracking info of  China Post Ordinary Small Packet Plus can be check here : www.17track.net/en
Super small size DC - DC synchronous rectification buck module

Areas of application:
Model aircraft dedicated DC - DC step-down module (2 s ~ 5 s polymer li-ion battery), DIY mobile power supply, car power supply, communication power supply equipment, a variety of occasions of volume and weight have strict requirements.

Technical parameters:
Model name
Mini - 360 (super small size DC - DC synchronous rectification buck module)
Nature of the module
The isolation step-down
Rectifying way
The synchronous rectifier
The input voltage
4.75 V - 23 V
The output voltage
1.0 V - 17 V
The output current
Peak 3 A and 1.8 A long time
Conversion efficiency
96% (highest)
Switching frequency
340 KHZ
The output ripple
30 mv (light)
Load regulation
Plus or minus 0.5%
Voltage regulation
Plus or minus 2.5%
Working temperature
- 40 to 85
The peripheral size
17 * 11 * 3.8 (length * width * height) (mm)

Features: use a body shaping power inductor and synchronous rectifier control chip, a smaller, more efficient.
