Dobszimuláló piezoelektromos érzékelő analóg kerámia rezgésérzékelő modul piezoelektromosság Arduino

Dobszimuláló piezoelektromos érzékelő analóg kerámia rezgésérzékelő modul piezoelektromosság Arduino barkácskészlethez

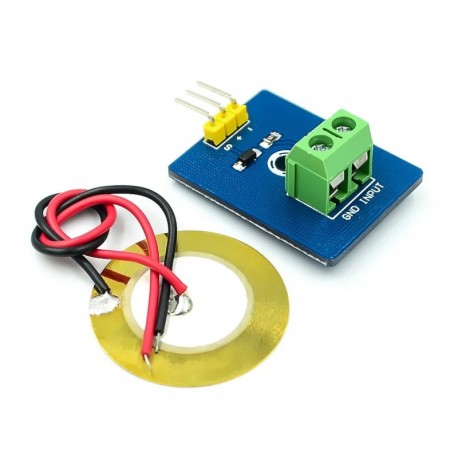

Drum Simulate Piezoelectric Sensor Analog Ceramic Vibration Sensor Module Piezoelectricity For Arduino DIY KIT
Specification
Supply Voltage: 3.3V to 5V
Working Current :<1mA
Working Temperature Range:10°70°
Output Signal:analog signal



Sample Code

void setup()
{
Serial.begin(9600); //Open the serial to set the baud rate for 9600bps
}
void loop()
{
int val;
val=analogRead(0); //Connect the analog piezoelectric ceramic vibration sensor to analog interface 0
Serial.print("Vibration is ");
Serial.println(val,DEC);//Print the analog value read via serial port
delay(100);
}

Result
Wiring as the above diagram and burning the code, after power-on, open the serial monitor, then set the baud rate for 9600 and vibrate ceramic chip, as the graph shown below.
