Kiváló minőségű állítható 3 tűs LED elektronikus villogó relé 3 tűs LED autóipari elektronikus vaku relé CF14

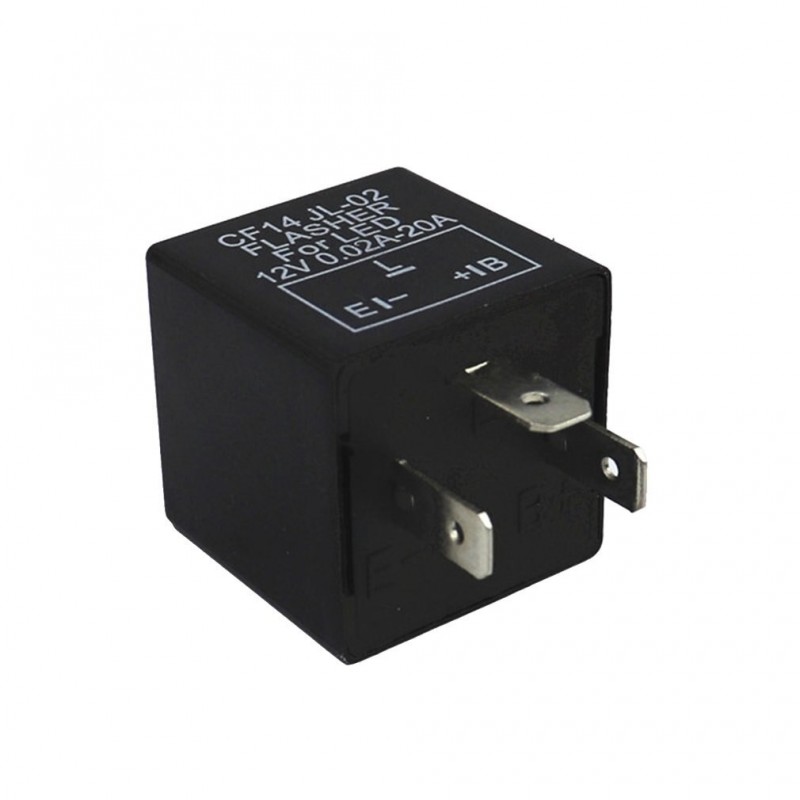

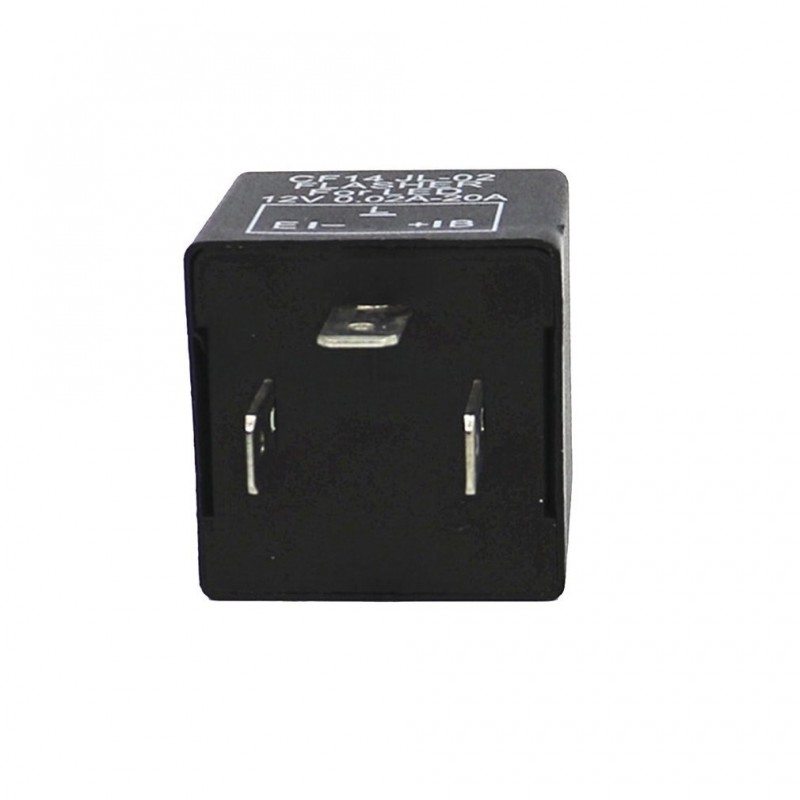

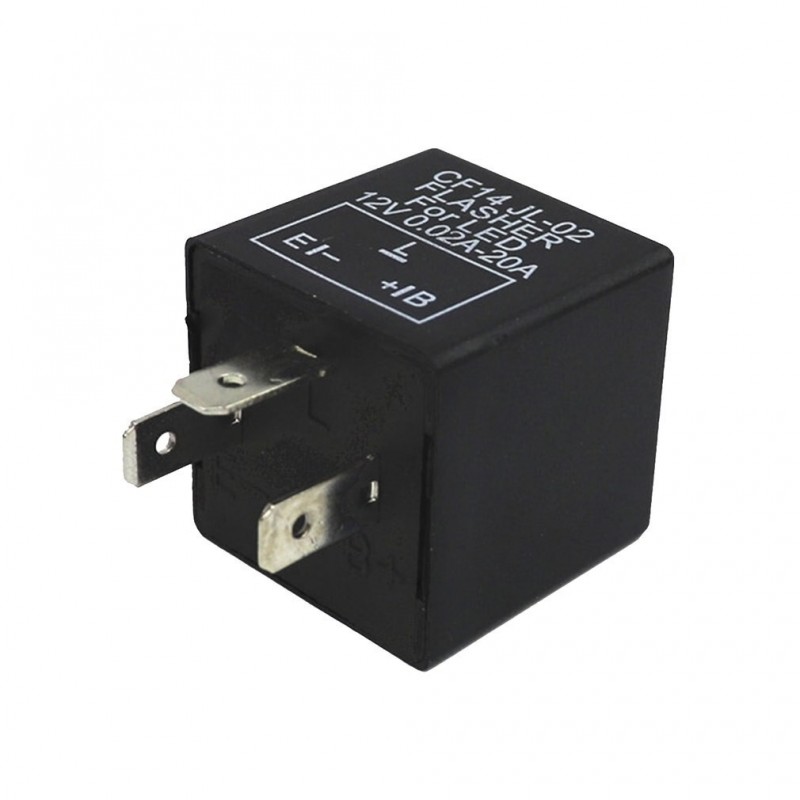

High Quality Adjustable 3 Pin LED Electronic Flasher Relay 3 Pin LED Automotive Electronic Flash Relay Car Relay CF14
Features:
1.Suitable for flasher light during car turning.
2.High sensitive and stable electronic timing.
3.Wide operating voltage, temperature range and long life.
4.Standard terminals, usage and Replacement easily.
5.With ticking sound. LED electronic flasher relay fix for turn signal blinker lights to fix hyper flash problems.
Descriptions:
1.Made of high quality material, it's durable in use, long service life.
Specifications:
Product Name: 3pin LED Flash Relay
Model Number: CF14
Material: Metal&Plastic
Color: Black
Weight: 20g/0.71oz
Coil rated Voltage (VDC): 12: 12V; 24: 24V
Flashing Frequency: KT: Adjustable; Nil: Non-adjustable
Rated Voltage: 12VDC, 24VDC
Operating Voltage: 11VDC ~ 15VDC, 22VDC ~ 30VDC
Test Voltage: 13VDC ± 0.2VDC, 26VDC ± 0.4VDC
Test Temperature: 20 ° C ± 2 ° C
Switch Load: 0.1W ~ 150W (0.02A ~ 20A)
Max Power: 150W
Flashing Frequency: 60 ~ 120 Times Per Minute
Duty Ratio: 30%  ~ 70%
Operating Temperature: -40°C ~  80°C
Life: 400 Working Hours
Package Informations:
Package Size: 52x42x35mm/2.05x1.65x1.38in
Package Weight: 22g/0.78oz
General Package
Package Included:
1 x 3pin LED Flash Relay
Notes:
1.Due to the light and screen difference, the item's color may be slightly different from the pictures.
2.Please allow 0.5-2 cm differences due to manual measurement.
