30A DC 5V-12V motorvezérlő modul H híd kétcsatornás hajtásvezérlő panel DHB-1A motorvezérlő modul

30A DC 5V-12V Motor Control Module H Bridge Dual Channel Drive Controller Board DHB-1A Motor Control Module
Features:
1. Reversible control and PWM speed control. High-speed switch design. Ultra-low internal resistance, low heat.
2. High performance and great reliability, durable replacement for the old or damaged one, no longer need to worry about not finding the right accessories.
3. Durable material: This product is made of high-quality material, durable, long service life, firm and stable in use.
4. Reversible control and PWM speed control. It can be used to control ordinary DC motors, smart car motors, etc.
5. Compact and portable: being so mini and light-weight, this product does not take much space and can be easily taken away.
Description:

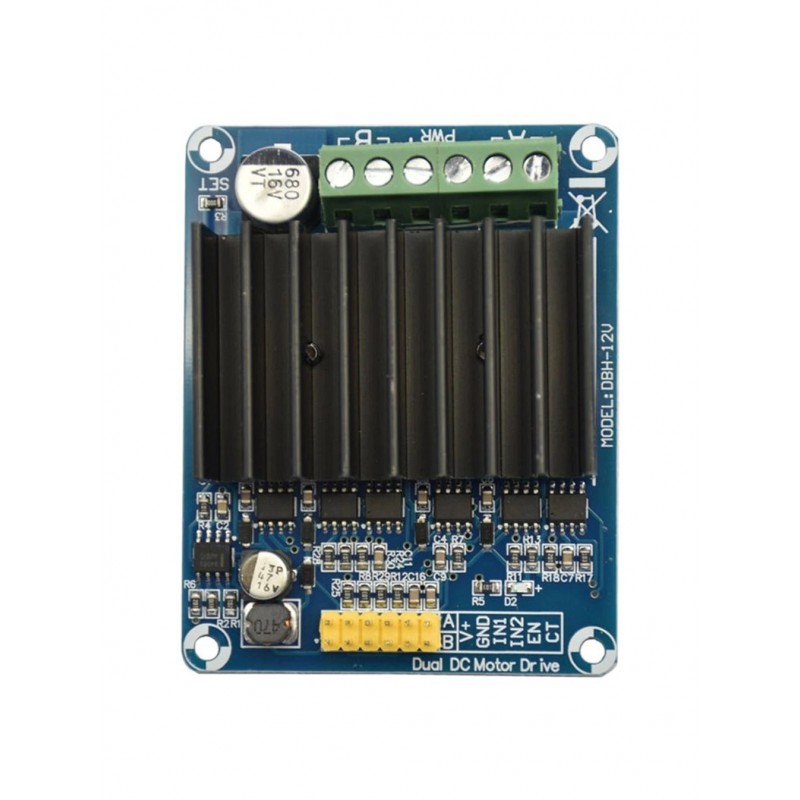

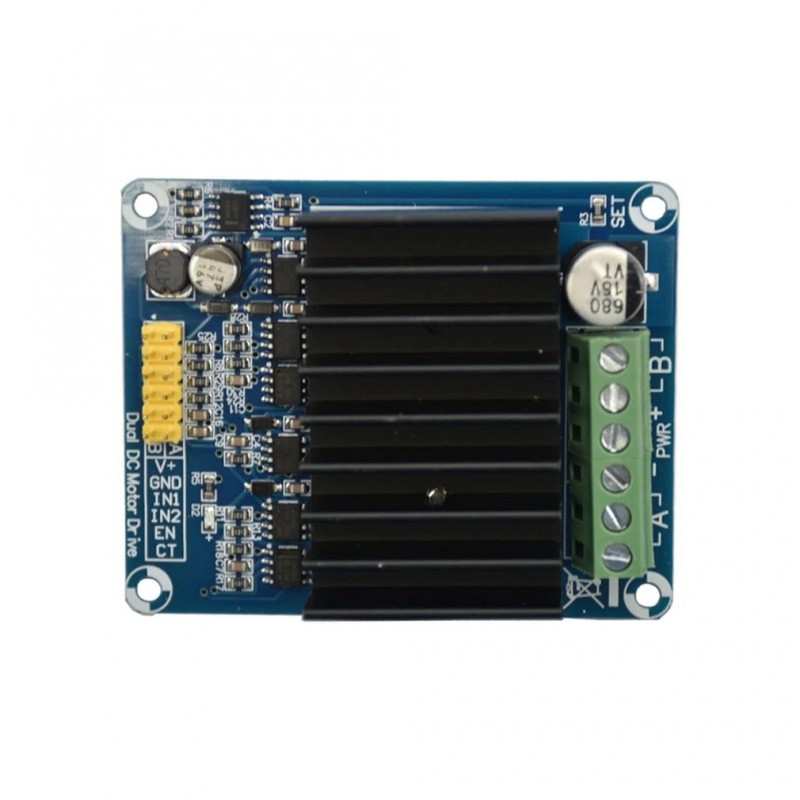

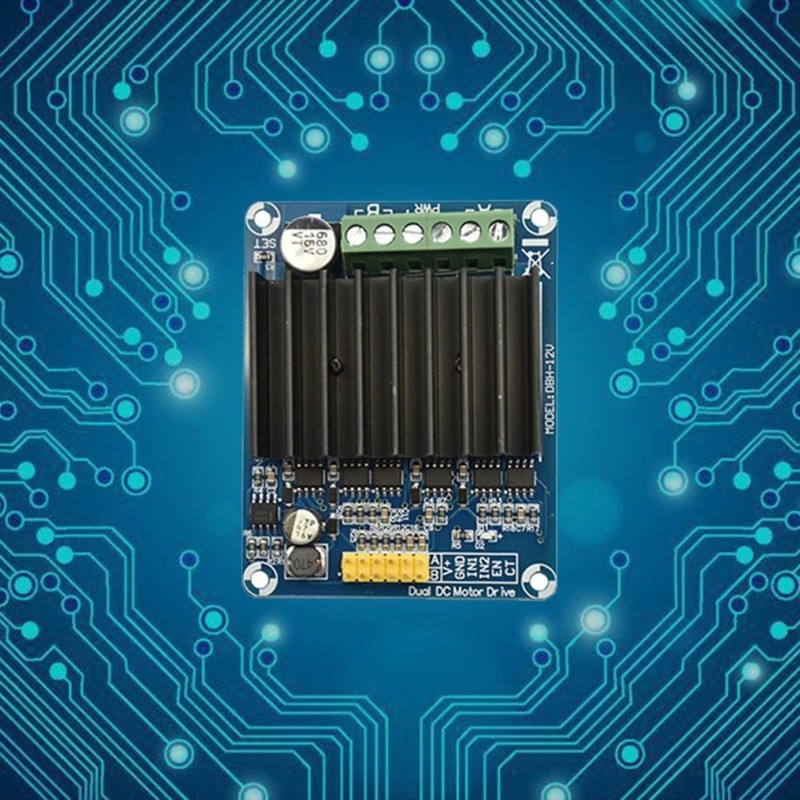

This module is a motor control module, which can be used to control ordinary DC motors, smart car motors, etc.
Specifications:
Color: black
Working voltage: DC5V-12V
Standby current: <30mA±5mA
Current: 0A-30A (maximum) / each channel
PWM mode: duty cycle: 0-98%
Frequency: General Motor: 16kHz
Ironless motor: 80kHz
TEC: 500Hz-80kHz
Size: 6.2 * 5.3 * 1.8cm
Package Included:
1 * Motor control module
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
