Mikrohullámú radar érzékelő 4-8M 180 ° -os LED lámpa intelligens kapcsoló Állandó a ház / vezérlés

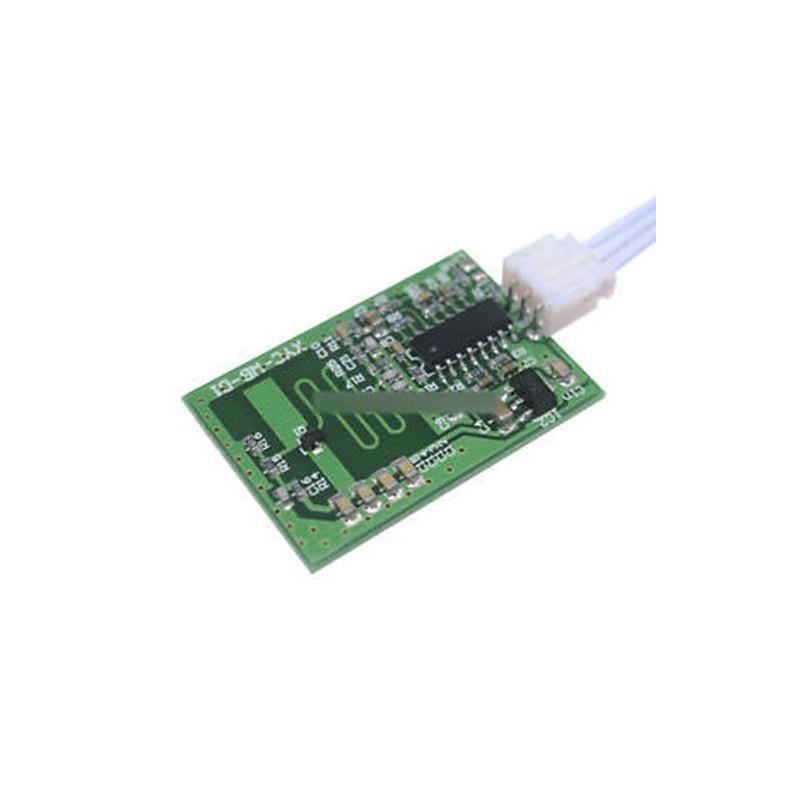

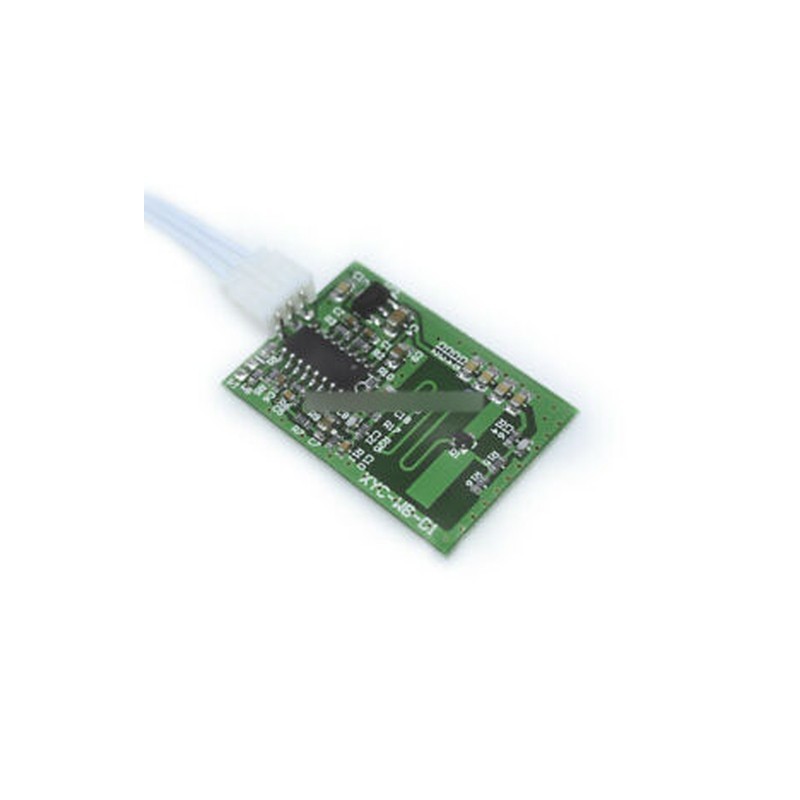

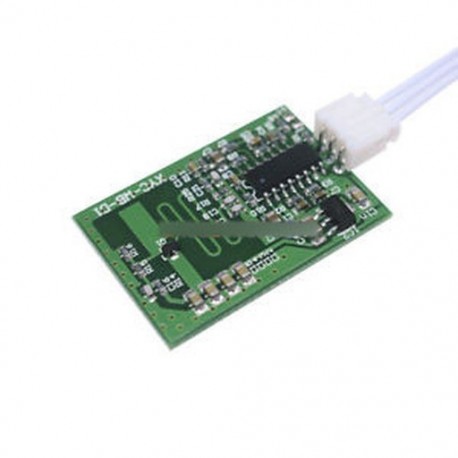

Microwave Radar Sensor 4-8M 180°LED Lamp Smart Switch Steady for Home/ControlDescription:It uses Doppler radar technology, with auto-sensing capabilities to control other product,High sensitivity, sensor distance, reliability, wide angle sensor,Wide supply voltage range and other characteristics. Widely used in lighting situations,anti-theft alarm situations.
Features:1. microwave sensors using planar antenna and receiving echo.2. The switch is active sensors.3. The sensors emit a high-frequency electromagnetic waves and receives their echo.4. The sensors detect changes within echo.5. The sensors detect tiny movement in detect range.6. Send signal to MCU and execution instruction.7. Signals are likely to be detected through the door, glass and thin walls.8. It will get best probe result if person or object when moving toward the sensor.9. This product is a strong anti-jamming capability, almost without wind, heat and other environmental factors foreign interference
Parameter:1. power supply voltage: 3.3-20VDC;2. the quiescent current: 4MA;3. module size: 23*33MM4. the transmission power: < 2mW;5. the output signal: TTL (3V/5V), repeat triggering6. sensing distance: 4-8 meters;7. detection angle: 180 degrees;8. the time delay: The default setting 20S/30S (adjustable).9,. Installation: housing supporting the installation/T8 split, integrated installation
Application:1. Security2. Intelligent Lighting3. Body sensors toys4. Industrial automation and control5. Auto-sensing electrical equipment6. Battery-powered automatic control
