DC12V - WH7016C DC12V / 24V AC220V digitális hőmérsékletszabályozó termosztát LCD kijelző

A cím elején szereplő szín/minta/méret/típus kerül kiszállításra!

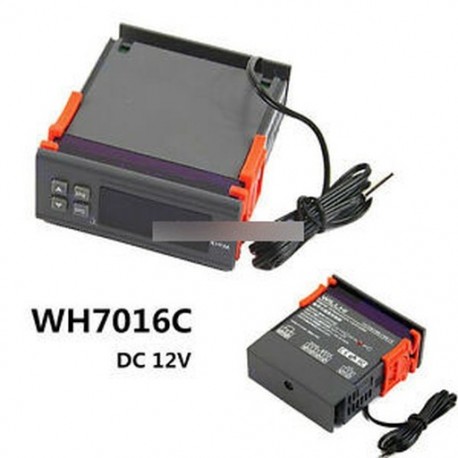

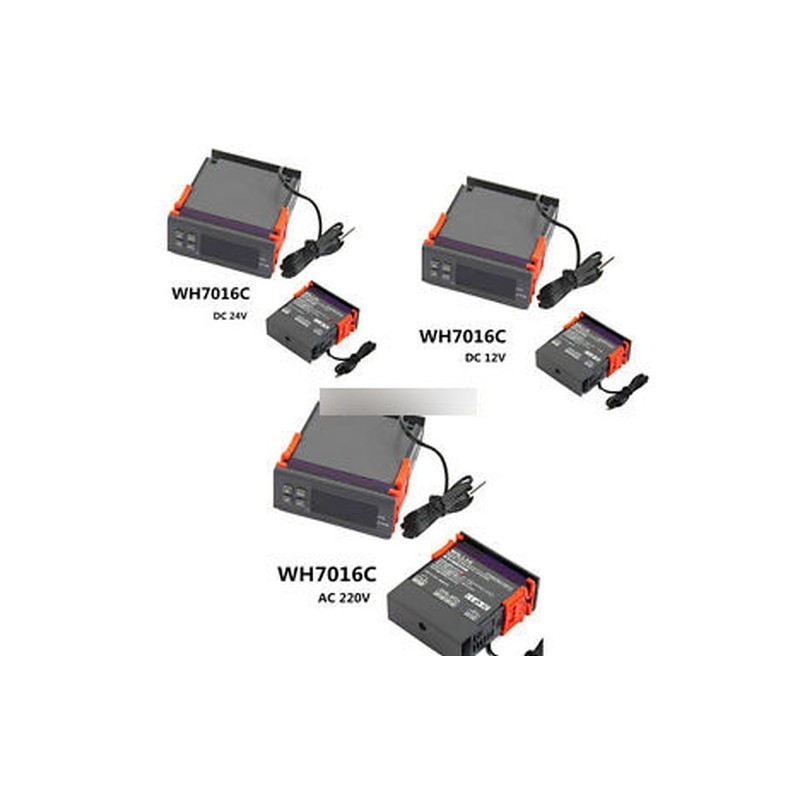

WH7016C DC12V/24V AC220V Digital Temperature Controller Thermostat LCD Display
Description:DC12V
DC24V AC220
Product Details:Digital Temperature Controller
Condition: New
A mini temperature controller
With large and clear LCD display for better readability
Wide temperature measuring range
High performance and durable housing
Heating and cooling can not be taken simultaneously
Temperature calibration function
Delay protection function
Ex-factory parameters locking function after short circuit
Upper and lower limits of temperature can be set
Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, bolier, steamer, industrial equipments and other temperature-controlled systems
Comes with temperature sensor probeSpecifications:Model:WH7016C
Temperature Measuring Range: -50°C ~ 110°C
Control temperature range: -50 ~ 110°C
Temperature measuring difference: ±0.5°C
Resolution: 0.1°C
Accuracy: ± 1 deg C (-50 - 70 °C )
Sensor Type: NTC (10K/3435)
Power Suppler : DC 12V/24V AV 220V
Power consumption: < 2W
Relay contact Current: Rated 5A
Data retention: Yes
Working temperature: 0- 50°C
Storage temperature: -10 - 60°C
Size: 78 x 71 x 29 mm ( L*W*H ) ,Probe cable length: 1m; Probe Size: φ4mm*20mm
Color: Show as pictures
Display Font: Red
PLS NOTE that due to lighting effects, monitor's brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item!Package Included:1 x Digital Temperature Controller Thermostat WH7016C DC12V/24V AV220
