Ac 80 ~ 260V 100A teljesítménymérő Pontos voltmérő Ampermérő kWh watt energiamérő T2K7

Ac 80~260V 100A Power Meter Accurate Voltmeter Ammeter Kwh Watt Energy Mete T2K7

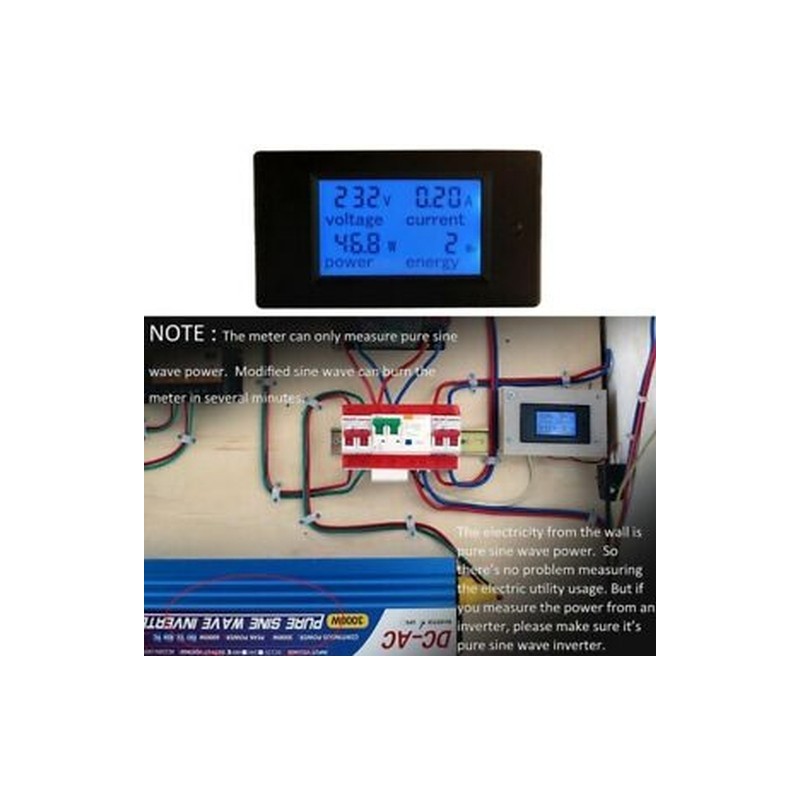

1. Please make sure the AC input is Pure Sine Wave.(Municipal electric power is pure sine wave).
Please don`t use the meter to measure AC power converterd from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave. This is very importatnt.
2. Applied load should not exceed the rated power.

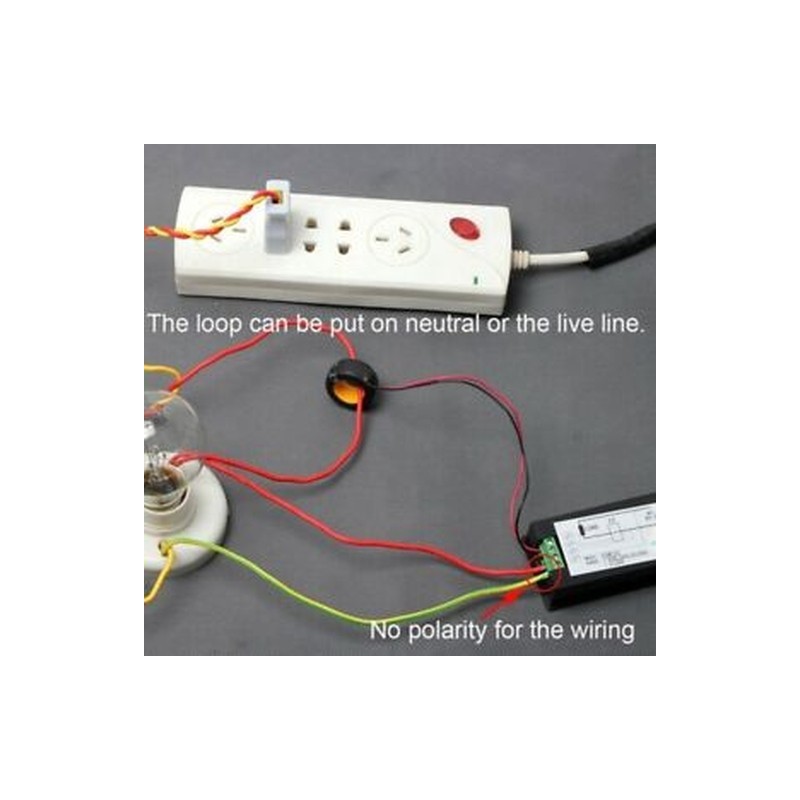

3. Wiring order can not be wrong.
4. This module is suitable for indoor, please do not use outdoor.
Colour: Black
Material: ABS electronic components
Working voltage: 80 ~ 260VAC
Working frequency: 50/60Hz
Measuring:Accuracy: 1%
Power Consumption: 0.2W
Measurement speed: 2 times/s
Operating Temperature Range: 14℉~140℉/-10℃~60℃
Store data when power off

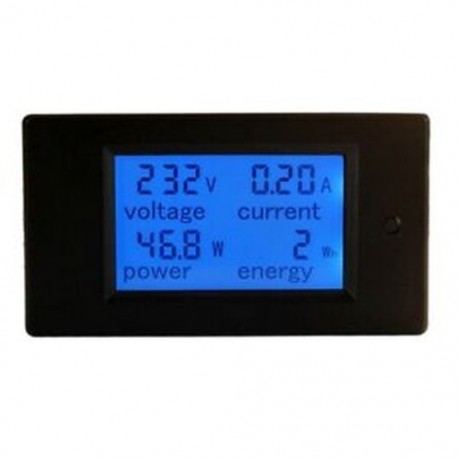

The blue backlight can be turned on/off manually
Test Range and Display format: 1.Power: test range: 0~22kW
Less than 1kW, display: 0.0~999.9W
1kW~10kW, display: 1000~9999W
more than the 10kW, display: 0.1~22.0kW
2.Energy: test range: 0~9999kWh
Less than 10KWh, display: 0~9999Wh
more than the 10kWh, display: 10~9999kWh
3.Voltage: test range: 80~260V(single-phase)
Display: 80~260V
4.Current: test range: 0~100A
Display: 0.00~99.99A

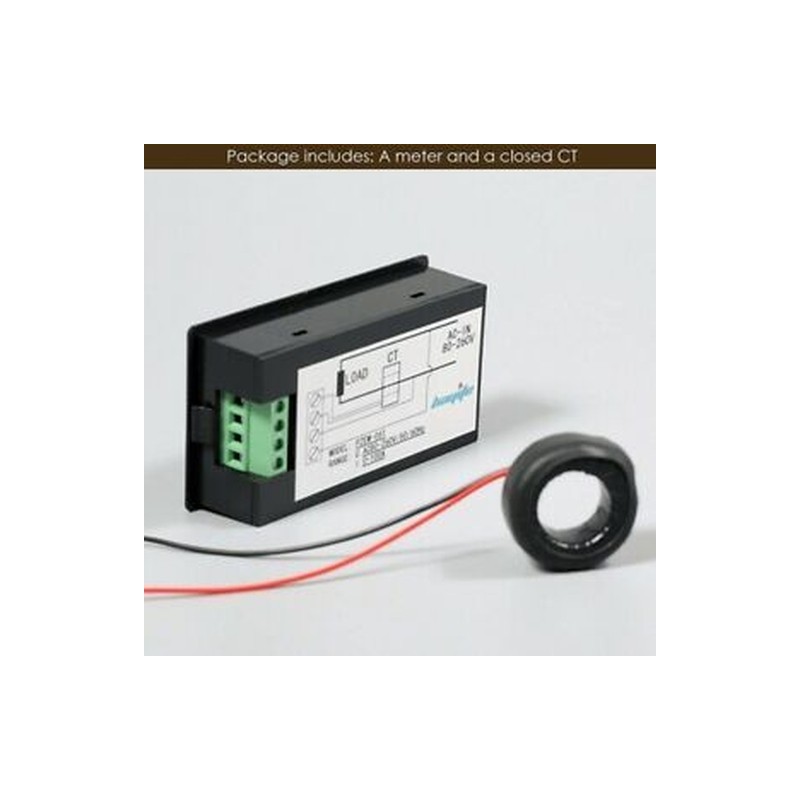

Packing including: 1* AC Power Multimeter
