2X (Professzionális aprító fémvágó dupla fejű fúrógép M3T6

2X(Professional Nibble Metal Cutter Double Head Sheet Nibbler Metal Cutter M3T6

2X(Feature:
Ergonomic design handle for comfort.
Double Headed Metal , Fits to any electric or power drill.
Convenient and Perfect alternative to the traditional electric or air powered nibbler.
Double cutting head and 360 degree adjustable.
Compact size, easy to operate and labor-saving.
Excellent cutting effect without any burrs and edges.
It should used with an 8mm electric drill or an air drill.
Suitable for car repair and maintenance and metal sheet productions.
Specification:
Model: YT-160A
Cutting capacity:
Steel plate: less than equal 1.8mm
Stainless steel plate: less than equal 1.2mm
Copper/aluminum plate: less than equal 2mm
Plastic/fiber plate: less than equal 2mm
Speed: 1500-3000rpm/min
colour: Silver black
Material: metal

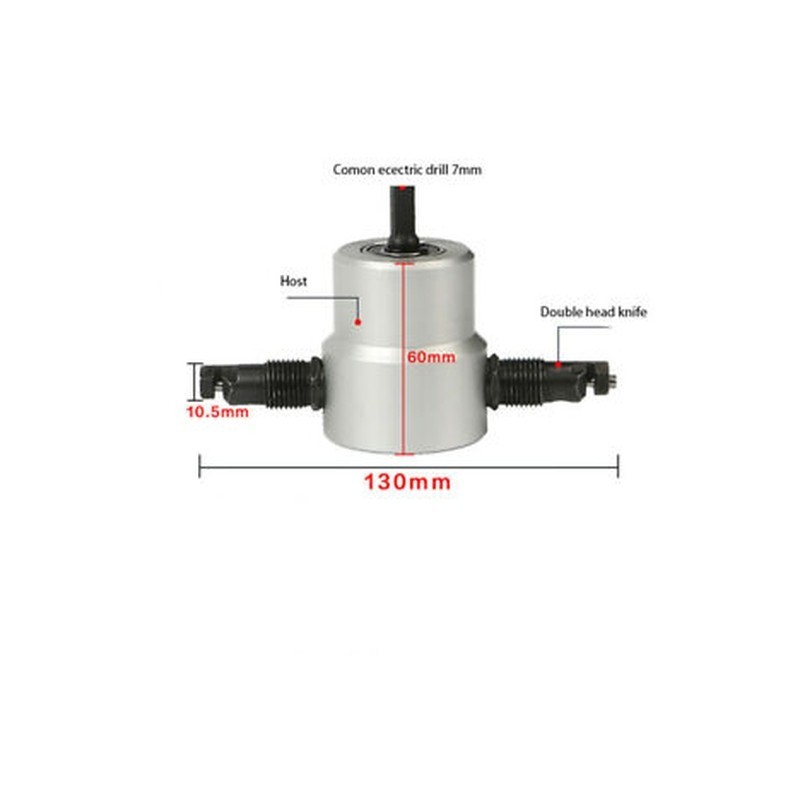

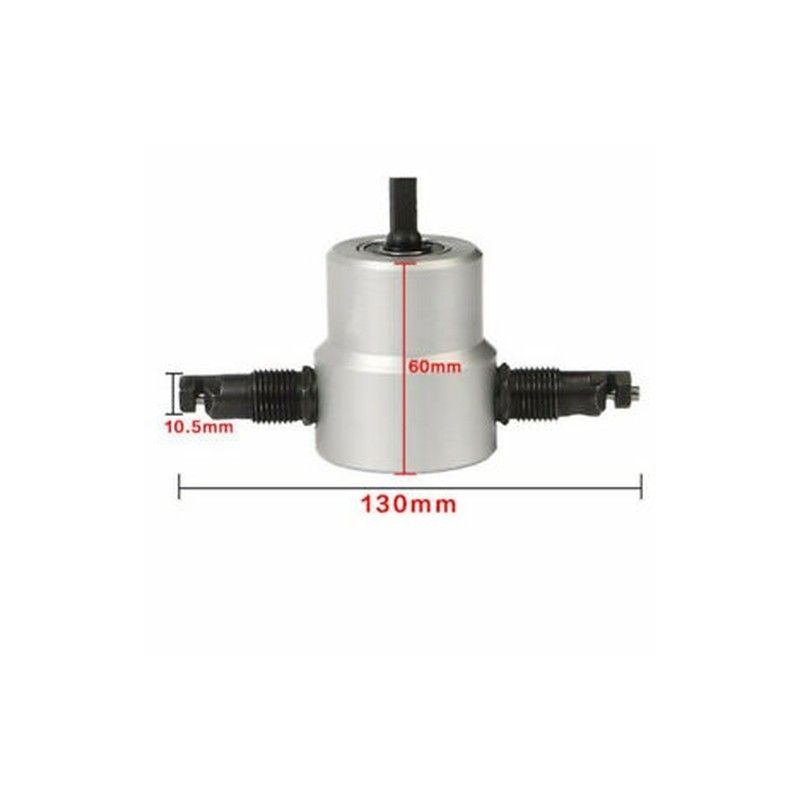

size: 18 x 5.1 x 7.8cm / 7inch x 2inch x 3inch(L*W*H)
Head diameter: 10.5mm
Minimium cutting diameter: 12mm
Instructions for use:
1. When using the thin plate hole opener, first insert the drill front end and the cutter into the round hole of the hole opener, connect the cutter to the electric drill and lock it tightly, and then tighten the stud screws of the three branches on the shelf to prevent the hole opener from sliding; put the left and right positioning pins upwards into the small square hole of the shelf, and finally adjust and tighten the top screw according to the size of the arc to be cut, and fix the ruler Peg to ensure the accuracy of cutting round holes.
2. When cutting the standard arc, please use a thin plate hole opener to keep the circular cut surface smooth and beautiful. It is also necessary to drill a 3 mm positioning eye, then drill a 12 mm hole, and insert the cutter head into the hole to cut the inner and outer circles.
Operational requirement:
1. It is important often oiled on the blade edge, especially for cutting aluminum plates.
2. Open the electric drill and then use,)
